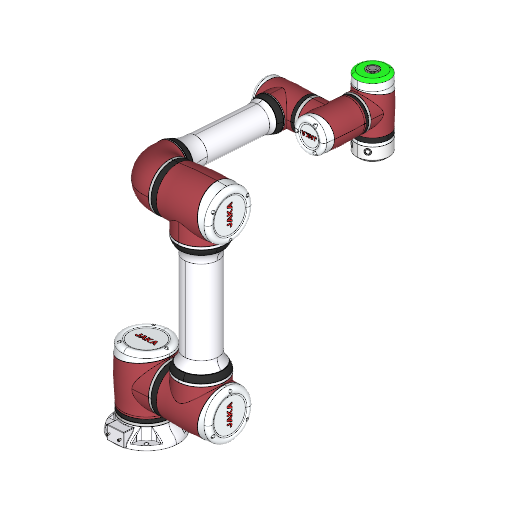

Cobot JAKA A 5 Specs and Applications

Specifications

Type

Cobot

Brand

Jaka

Model

A 5

Axes

Payload

5 kg

Reach

954 mm

Repeatability

0.02 mm

Weight

23 kg

Maximum speed

1000 mm/s

Speed at rated payload

1000 mm/s

IP rating

IP54 (end joints IP67)

Mounting orientation

Any angle

Controller

CAB 7

Power supply

100-240 VAC, 50/60 Hz

Power consumption

350 W

Tool flange

Certifications

CR certification

Safety functions

Collaborative operation per GB 11291.1-2011; CR certification

Communication interfaces

TCP/IP; Modbus TCP; Modbus RTU; PROFINET (Slave); Ethernet/IP

The Cobot JAKA A 5 is a versatile 6-axis robotic arm designed for industrial automation, offering a payload capacity of 5 kg and a reach of 954 mm. Weighing 23 kg, it boasts a repeatability of 0.02 mm and a maximum speed of 1000 mm/s. With an IP54 rating and IP67 at the end joints, it ensures durability in various environments and supports multiple communication interfaces including TCP/IP and Modbus for seamless integration with existing systems.

3D View

What are the technology applications of A 5?

JAKA A 5 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of JAKA A 5: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

JAKA A 5 applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase JAKA A 5 or request a quote, please contact the manufacturer or an authorized local supplier.
