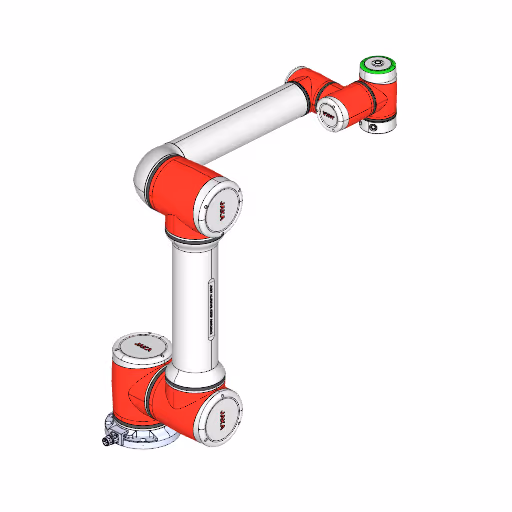

Cobot JAKA Pro 12 Specs and Applications

Specifications

Type

Cobot

Brand

Jaka

Model

Pro 12

Axes

Payload

12 kg

Reach

1327 mm

Repeatability

0.02 mm

Weight

41 kg

Maximum speed

3 m/s

Speed at rated payload

3 m/s

IP rating

IP68

Operating temperature

-10 to 50 °C

Mounting orientation

Any angle (floor, wall, ceiling, inverted)

Controller

CAB 2.1 control cabinet

Power supply

100-240 VAC, 50/60 Hz

Power consumption

500 W

Tool flange

ISO 9409-1:2004 flange interface with location pins (Pro 12 end effector mounting per ISO 9409-1)

Certifications

Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, complies with GB 11291.1-2011

Safety functions

Emergency stop, three stop categories (Cat 0, Cat 1, Cat 2), response to external estop, safety digital inputs, collision detection, speed/torque limiting

Communication interfaces

TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP

The Cobot JAKA Pro 12 is a versatile 6-axis industrial robot designed to enhance automation in various applications. With a payload capacity of 12 kg, a reach of 1327 mm, and an impressive repeatability of 0.02 mm, the Pro 12 excels in precision tasks while operating at maximum speeds of 3 m/s. Built to withstand demanding environments, it features an IP68 rating and can be mounted in any orientation, making it suitable for diverse industrial setups.

3D View

What are the technology applications of Pro 12?

JAKA Pro 12 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of JAKA Pro 12: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
