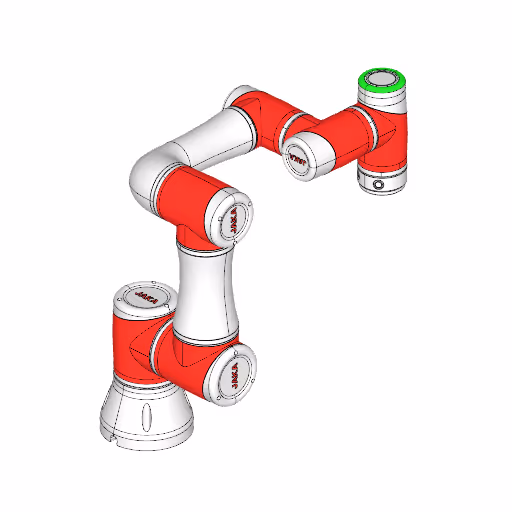

Cobot JAKA Zu 3 Specs and Applications

Specifications

Type

Cobot

Brand

Jaka

Model

Zu 3

Axes

Payload

3 kg

Reach

626 mm

Repeatability

0.020 mm

Weight

12 kg

Maximum speed

1.5 m/s

Speed at rated payload

5.63 m/s

IP rating

IP54

Mounting orientation

any angle (floor, wall, ceiling)

Controller

Control Cabinet CAB 2.1

Power supply

100-240 VAC, 50-60 Hz

Power consumption

150 W

Tool flange

Certifications

CE, CR, KCs, GB 11291.1-2011, 15066

Cleanroom class

ISO 14644-1:2015, Class 5

Safety functions

28 safety functions including emergency stop, safeguard stop, motion status, hand-guided mode, speed monitoring, torque and power limitation, collision protection, position monitoring (PL d / Category 3)

Communication interfaces

TCP/IP, Modbus TCP, Modbus RTU, PROFINET, Ethernet/IP

The Cobot JAKA Zu 3 is a versatile 6-axis collaborative robot designed for a wide range of industrial automation applications. With a payload capacity of 3 kg and a reach of 626 mm, this robust cobot offers exceptional repeatability of 0.020 mm and operates at a maximum speed of 1.5 m/s, ensuring efficient performance while adhering to safety standards with 28 integrated safety functions. Its IP54 rating, compatibility with various mounting orientations, and communication capabilities such as TCP/IP and PROFINET make the JAKA Zu 3 an ideal solution for both cleanroom environments and diverse industrial settings.

3D View

What are the technology applications of Zu 3?

JAKA Zu 3 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of JAKA Zu 3: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

JAKA Zu 3 applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase JAKA Zu 3 or request a quote, please contact the manufacturer or an authorized local supplier.
