Industrial Robot KAWASAKI MC004V-B Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kawasaki

Model

MC004V-B

Axes

Payload

4 kg

Reach

505.8 mm

Repeatability

0.05 mm

Weight

25 kg

Maximum speed

700 deg/s on J4 axis (other axes various up to 500 deg/s)

IP rating

Arm: IP65, Wrist: IP67

Operating temperature

10 to 35 °C

Mounting orientation

Floor, Ceiling

Controller

F60

Cleanroom class

ISO Class 5

Introducing the Industrial Robot KAWASAKI MC004V-B, a highly efficient automation solution featuring six axes and a payload capacity of 4 kg. With a remarkable reach of 505.8 mm and a repeatability of 0.05 mm, this robot ensures precise operations at impressive speeds of up to 700 deg/s on the J4 axis. Built to operate in a variety of environments, it has an IP65 rating for the arm and IP67 for the wrist, making it ideal for cleanroom applications up to ISO Class 5, and can be mounted in both floor and ceiling orientations.

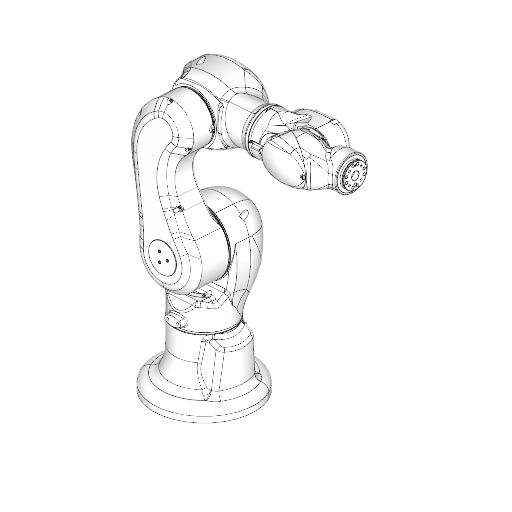

3D View

What are the technology applications of MC004V-B?

KAWASAKI MC004V-B is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KAWASAKI MC004V-B: Assembly, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
