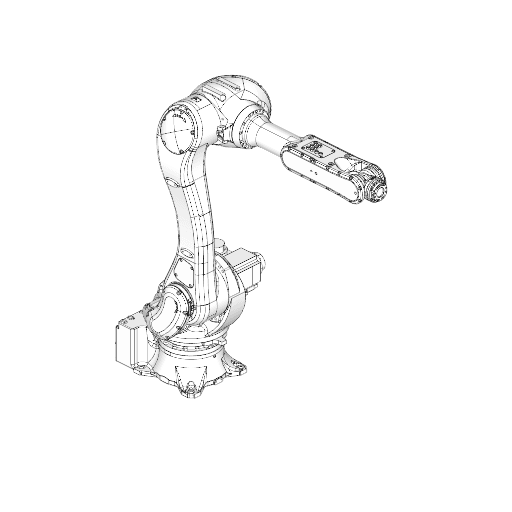

Industrial Robot KAWASAKI RA020N-A Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kawasaki

Model

RA020N-A

Axes

Payload

20 kg

Reach

1725 mm

Repeatability

0.04 mm

Weight

230 kg

Maximum speed

11500 mm/s

Speed at rated payload

210 °/s

IP rating

Wrist: IP67; Arm: IP65

Mounting orientation

Floor, Ceiling

Controller

E01

Power supply

AC200-220V ±10%, 50/60Hz, 3-phase

Power consumption

5.6 kVA

Safety functions

Emergency stop switches; Dual-system safety circuit; Safety circuits satisfy ISO 13849-1 Category 4 PLe; Teach pendant with enabling switch; Servo ON lamp; External E-stop inputs

Communication interfaces

USB, Ethernet (100BASE-TX), RS-232C; External I/O channels (Emergency stop, Hold etc.)

The KAWASAKI RA020N-A is a highly advanced industrial robot designed for precision applications with its 6 axes and a robust payload capacity of 20 kg. With an impressive reach of 1725 mm and a repeatability of just 0.04 mm, it is capable of achieving maximum speeds of 11500 mm/s, ensuring efficient operation in demanding environments. This model features a versatile IP rating for its wrist (IP67) and arm (IP65), allowing for various mounting orientations including floor and ceiling, while its comprehensive safety functions and communication interfaces enhance operational reliability and integration within your automation systems.

3D View

What are the technology applications of RA020N-A?

KAWASAKI RA020N-A is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KAWASAKI RA020N-A: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KAWASAKI RA020N-A applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling
