Industrial Robot KAWASAKI RS080N-B Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kawasaki

Model

RS080N-B

Axes

Payload

80 kg

Reach

2100 mm

Repeatability

0.06 mm

Weight

555 kg

Maximum speed

12700 mm/s

Speed at rated payload

12700 mm/s

IP rating

Wrist: IP67, Base axes: IP65

Mounting orientation

Floor, Ceiling

Controller

E02 (also supported F02)

Power supply

AC 200-220 V ±10 %, 50/60 Hz, 3 phase

Power consumption

7.5 kVA

Safety functions

Safety Circuit Category 4, Performance Level e (EN ISO 13849-1)

Communication interfaces

Ethernet (100BASE-TX), USB, RS-232C

The Industrial Robot KAWASAKI RS080N-B is a highly efficient automation solution designed for demanding industrial applications. Featuring six axes, this robot can handle a substantial payload of up to 80 kg with a reach of 2100 mm and impressive repeatability of 0.06 mm. With a maximum speed of 12700 mm/s and robust safety functions, including a Safety Circuit Category 4, this model provides reliable performance in both floor and ceiling mounting orientations, making it a versatile choice for various automation tasks.

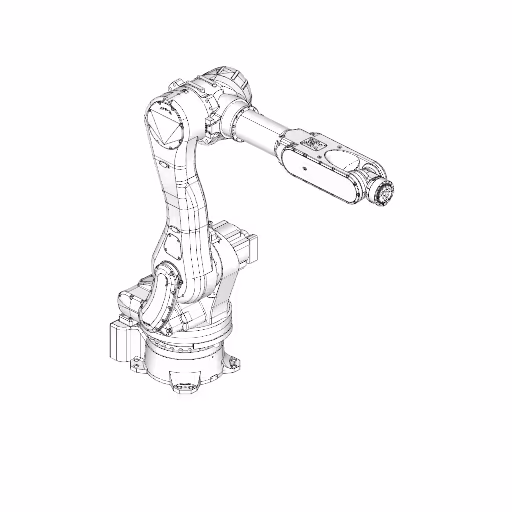

3D View

What are the technology applications of RS080N-B?

KAWASAKI RS080N-B is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KAWASAKI RS080N-B: Assembly, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
