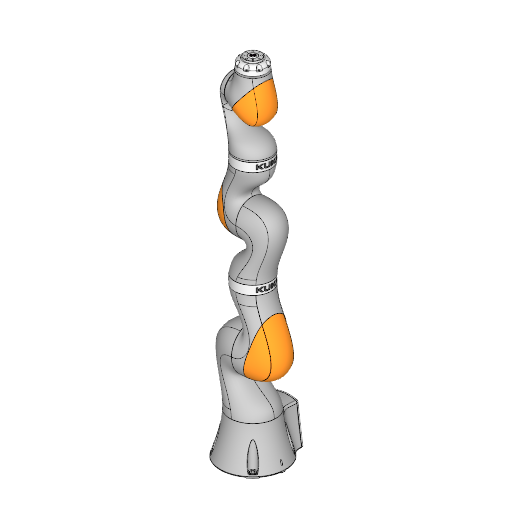

Cobot KUKA iiwa 14 R820 – MF Inside pneumatic Specs and Applications

Specifications

Type

Cobot

Brand

Kuka

Model

iiwa 14 R820 - MF Inside pneumatic

Axes

Payload

14 kg

Reach

820 mm

Repeatability

0.15 mm

Weight

29.5 kg

Maximum speed

135 °/s

Speed at rated payload

85 °/s

IP rating

IP54

Mounting orientation

Floor, Ceiling, Wall

Controller

KUKA Sunrise Cabinet

Tool flange

DIN ISO 9409-1-50-7-M6

Certifications

Category 3 / Performance Level d; compliant with human-robot collaboration safety standards

Cleanroom class

ISO Class 3 (for CR version)

Safety functions

Torque sensors in all 7 axes; immediate detection of contact; collaborative operation without safety fences

The KUKA iiwa 14 R820 - MF Inside pneumatic is a highly advanced collaborative robot (cobot) designed for precision and efficiency in industrial automation. With seven axes, it offers a payload capacity of 14 kg and a reach of 820 mm, making it suitable for a variety of applications. Its high repeatability of 0.15 mm and maximum speed of 135 °/s enhance productivity, while built-in torque sensors ensure safety for collaborative operations without the need for safety fences.

3D View

What are the technology applications of iiwa 14 R820 - MF Inside pneumatic?

KUKA iiwa 14 R820 – MF Inside pneumatic is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA iiwa 14 R820 – MF Inside pneumatic: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
