Cobot KUKA iiwa 14 R820 – MF IO electric Specs and Applications

Specifications

Type

Cobot

Brand

Kuka

Model

iiwa 14 R820 - MF IO electric

Axes

Payload

14 kg

Reach

820 mm

Repeatability

0.15 mm

Weight

29.9 kg

Maximum speed

135 °/s

Speed at rated payload

85 °/s

IP rating

IP54

Operating temperature

5 to 45 °C

Mounting orientation

Floor, Wall, Ceiling

Controller

KUKA Sunrise Cabinet

Power supply

AC 110-230 V, 50/60 Hz

Tool flange

DIN ISO 9409-1-50-7-M6

Certifications

CE, EN ISO 13849-1

Cleanroom class

ISO 5

Safety functions

Safety requirements Category 3 / Performance Level d (EN ISO 13849-1), torque sensing in all 7 axes for contact detection and speed reduction

Communication interfaces

USB, Ethernet

The KUKA iiwa 14 R820 - MF IO electric is a versatile cobot designed for industrial automation, featuring seven axes and a payload capacity of 14 kg. With a reach of 820 mm and a repeatability of 0.15 mm, it operates efficiently at speeds up to 135 °/s while ensuring safety with advanced torque sensing across all axes. Certified for use in cleanroom class ISO 5 and equipped with a KUKA Sunrise Cabinet controller, this cobot is suitable for various mounting orientations and operates within an ambient temperature range of 5 to 45 °C.

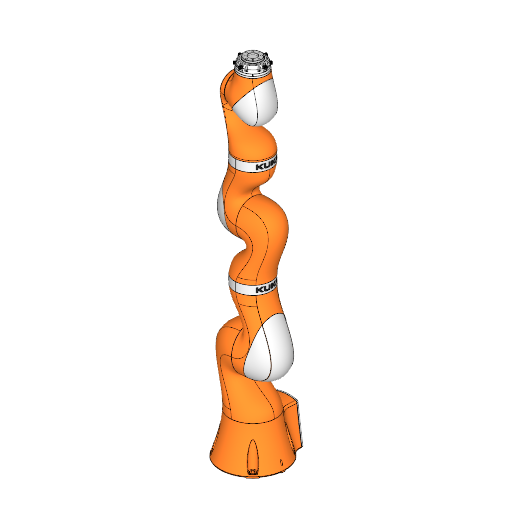

3D View

What are the technology applications of iiwa 14 R820 - MF IO electric?

KUKA iiwa 14 R820 – MF IO electric is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA iiwa 14 R820 – MF IO electric: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
