Industrial Robot KUKA KR 16-2 (slim version) Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 16-2 (slim version)

Axes

Payload

16 kg

Reach

1611 mm

Repeatability

0.050 mm

Weight

235 kg

Maximum speed

200 °/s at rated payload (axis 1)

Speed at rated payload

630 °/s

IP rating

IP65 (main axes), IP65 wrist; variant with inline wrist IP67

Mounting orientation

Floor, Wall, Ceiling, Any angle mounting

Controller

KR C4 or KR C5 (CYBERTECH) controller

Tool flange

Standardized interface for inline wrist, four tapped holes (wrist/arm top side)

Certifications

CE; variants: IP & wrist axes protection; food-sector hygiene variants compliant with Machinery Directive 2006/42/EC, DIN ISO 14159, NSF H1 lubricant standards

Cleanroom class

ISO Class 5

The KUKA KR 16-2 is a high-performance industrial robot designed for versatility and precision in automation applications. With six axes, a payload capacity of 16 kg, and a reach of 1611 mm, this slim version robot excels in tasks requiring high repeatability of 0.050 mm and maximum speed of 200 °/s at rated payload. Engineered to meet stringent cleanroom standards (ISO Class 5) and equipped with an IP65 rating for its main axes and wrist, the KR 16-2 is compatible with both KR C4 and KR C5 (CYBERTECH) controllers, ensuring reliable operation in various mounting orientations.

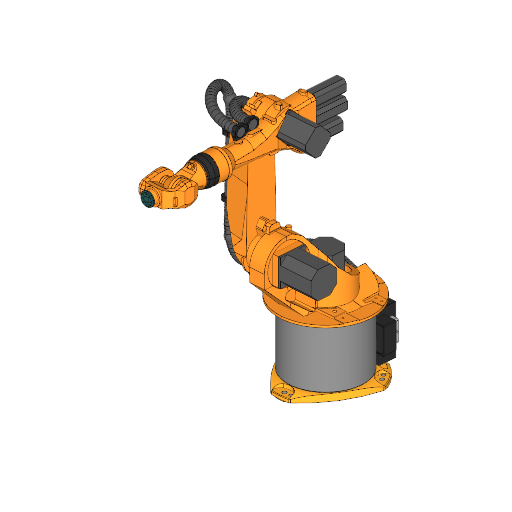

3D View

What are the technology applications of KR 16-2 (slim version)?

KUKA KR 16-2 (slim version) is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 16-2 (slim version): Deburring, Machine Tending, Pick and place, Robot milling, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KUKA KR 16-2 (slim version) applications programmed with ENCY Robot

Pick and place

Robot milling

Robot welding
