Industrial Robot KUKA KR 16-3 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 16-3

Axes

Payload

16 kg

Reach

1611 mm

Repeatability

0.050 mm

Weight

235 kg

Maximum speed

630 °/s

Speed at rated payload

615 °/s

IP rating

IP65

Operating temperature

+5 to +55 °C

Mounting orientation

Floor, Wall, Ceiling, Angle

Controller

KR C4

Power supply

400-480 VAC, 50/60 Hz

Power consumption

255 kg

Tool flange

ISO 9409-1-50-4-M6

Certifications

CE, NRTL, CR

Cleanroom class

ISO Class 5 / ISO Class 4

Safety functions

Emergency Stop, Safety Stop 1 & 2, Standstill Monitoring, Velocity Monitoring, Operator Safety (Category 3 PL d)

Communication interfaces

PROFINET, PROFIBUS, DeviceNet, Ethernet/IP, Gigabit Ethernet, standard I/O modules

The Industrial Robot KUKA KR 16-3 is a high-performance, versatile automation solution designed for a range of industrial applications. Featuring six axes, it boasts a payload capacity of 16 kg and a reach of 1611 mm, achieving high repeatability of 0.050 mm and maximum speeds of 630 °/s. With an IP65 rating, it operates efficiently within a temperature range of +5 to +55 °C and offers flexible mounting options while ensuring safety and communication compatibility with various industrial protocols.

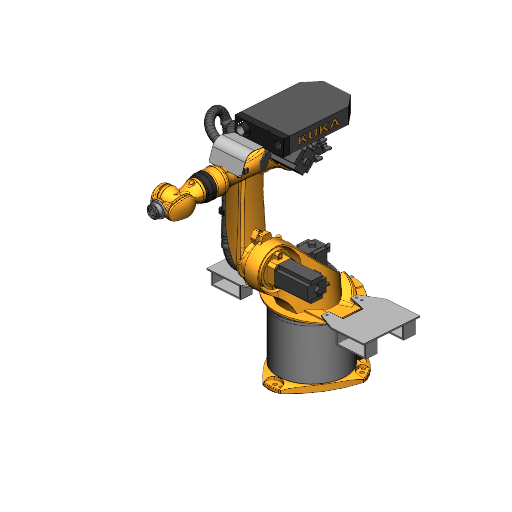

3D View

What are the technology applications of KR 16-3?

KUKA KR 16-3 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 16-3: Machine Tending, Pick and place, Robot milling, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KUKA KR 16-3 applications programmed with ENCY Robot

Pick and place

Robot milling

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA KR 16-3 or request a quote, please contact the manufacturer or an authorized local supplier.
