Industrial Robot MITSUBISHI RV-13FRL Specs and Applications

Specifications

Type

Industrial Robot

Brand

Mitsubishi

Model

RV-13FRL

Axes

Payload

13 kg

Reach

1388 mm

Repeatability

0.05 mm

Weight

130 kg

Maximum speed

9700 mm/s

Speed at rated payload

9700 mm/s

IP rating

IP40 (standard) / IP67 (oil mist) / ISO Class 3 (cleanroom)

Mounting orientation

Floor, Ceiling, Wall

Controller

CR800-D / CR800-R

Power supply

1-phase AC 230V or 3-phase AC 200-230V

Power consumption

3000 VA

Certifications

CE, UKCA

Cleanroom class

ISO Class 3

Safety functions

STO (Safe Torque Off), SS1 (Safe Stop 1), SS2 (Safe Stop 2), SOS (Safe Operation Stop), SLS (Safely-Limited Speed), SLP (Safely-Limited Position)

Communication interfaces

Profibus, Profinet, EtherCAT, Ethernet/IP, Devicenet, CC-Link, CC-Link IE, LAN

The MITSUBISHI RV-13FRL is a highly versatile industrial robot featuring six axes, designed to handle a payload of 13 kg with a reach of 1388 mm. With impressive repeatability of 0.05 mm and a maximum speed of 9700 mm/s, this robot is suited for various applications, including cleanroom environments with an ISO Class 3 certification. It can be easily mounted on the floor, ceiling, or wall, and supports multiple communication interfaces, ensuring seamless integration into your industrial automation systems.

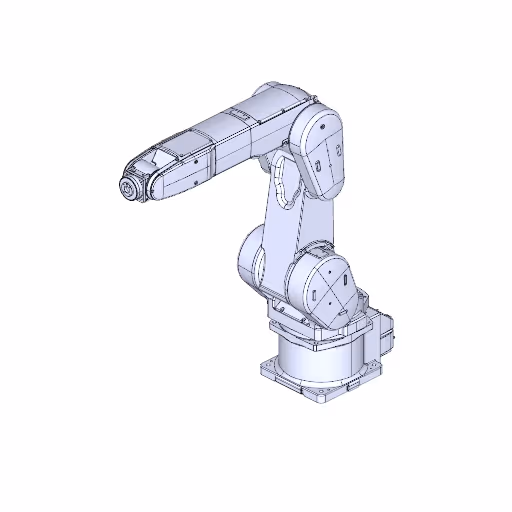

3D View

What are the technology applications of RV-13FRL?

MITSUBISHI RV-13FRL is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MITSUBISHI RV-13FRL: Assembly, Deburring, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

MITSUBISHI RV-13FRL applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase MITSUBISHI RV-13FRL or request a quote, please contact the manufacturer or an authorized local supplier.

Other Industrial Robot by Mitsubishi

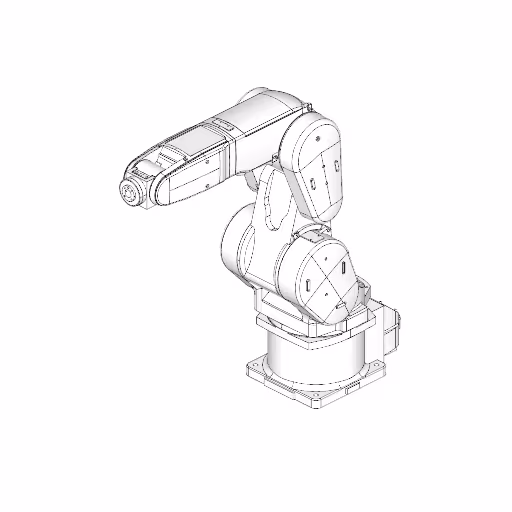

MITSUBISHI RV-13F/20F
