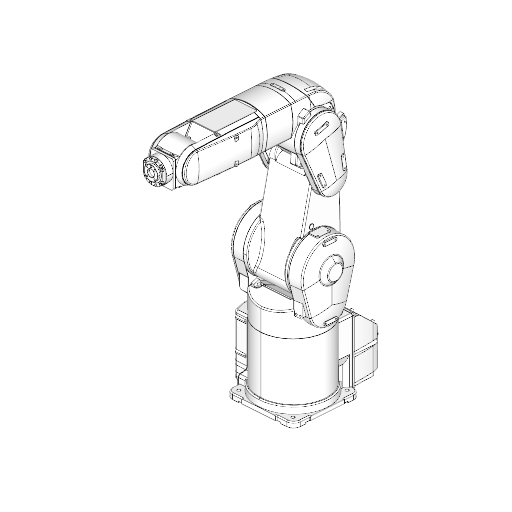

MITSUBISHI RV-4FL

Industrial Robot

Mitsubishi6 axesDigital twin for ENCY Robot

About

The MITSUBISHI RV-4FL is a versatile 6-axis industrial robot designed for precision automation tasks, featuring a payload capacity of 4 kg and a reach of 649 mm. With a remarkable repeatability of 0.02 mm and maximum speeds of 9048 mm/s, this robot is adept at handling demanding applications in various environments, including cleanroom settings (ISO Class 3 optional). Its flexible mounting options (floor, ceiling, wall) and extensive safety functions enhance operational safety, while the robust power supply of 1-phase 200-230 VAC ensures reliable performance across multiple tasks.

What are the technology applications of RV-4FL?

MITSUBISHI RV-4FL is a versatile robot suitable for a wide range of industrial applications. Primary applications of MITSUBISHI RV-4FL: Assembly, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

MITSUBISHI RV-4FL applications programmed with ENCY Robot

Pick and place

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase MITSUBISHI RV-4FL or request a quote, please contact the manufacturer or an authorized local supplier.

Download MITSUBISHI RV-4FL digital twin

Start for free

Specifications

General

Type: Industrial Robot
Brand: Mitsubishi
Model: RV-4FL
Axes: 6

Performance

Payload: 4 kg
Reach: 649 mm
Repeatability: 0.02 mm
Weight: 41 kg
Maximum speed: 9048 mm/s
Speed at rated payload: 9048 mm/s

Environment

IP rating: IP40 (standard), IP67 (option)
Mounting orientation: Floor, Ceiling, Wall
Cleanroom class: ISO Class 3 (optional)

Integration

Controller: CR800-D / CR800-R + R16RTCPU
Power supply: 1-phase 200-230 VAC
Power consumption: 1000 VA
Tool flange: ISO 9409-1-31.5
Communication interfaces: Standard robot interface cards; EtherNet/IP network interface optional
Safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SS2 (Safe Stop 2), SOS (Safe Operation Stop), SLS (Safely-Limited Speed), SLP (Safely-Limited Position)
Certifications: CE, RoHS, KC / Korea Safety Certification (as applicable)
