Industrial Robot MITSUBISHI RV-8CRL Specs and Applications

Specifications

Type

Industrial Robot

Brand

Mitsubishi

Model

RV-8CRL

Axes

Payload

8 kg

Reach

931 mm

Repeatability

0.02 mm

Weight

41 kg

Maximum speed

10500 mm/s

Speed at rated payload

10500 mm/s

IP rating

IP65

Mounting orientation

Floor, ceiling, wall-mounted

Controller

CR800-CVD

Power supply

Single-phase AC 200-230V

Power consumption

2000 VA

Tool flange

4-M5 thread depth 8, φ5H7D8 mechanical interface

Certifications

CE, UKCA, RoHS compliant

Safety functions

Safety monitoring function; Safety I/O with redundant inputs/outputs; Safety logic editable by user

Communication interfaces

Ethernet (10/100/1000BASE-TX), USB, SSCNET III/H, CC-Link IE Field Basic, optional EtherNet/IP and PROFINET via network base cards

The MITSUBISHI RV-8CRL is a versatile industrial robot designed for precision and efficiency, featuring six axes and a payload capacity of 8 kg. With a maximum reach of 931 mm and exceptional repeatability of 0.02 mm, this 41 kg robot can operate at speeds of up to 10,500 mm/s, making it ideal for a range of automation tasks. The RV-8CRL supports multiple mounting orientations, is IP65 rated for robust protection, and comes equipped with advanced safety functions and various communication interfaces for seamless integration into your automation systems.

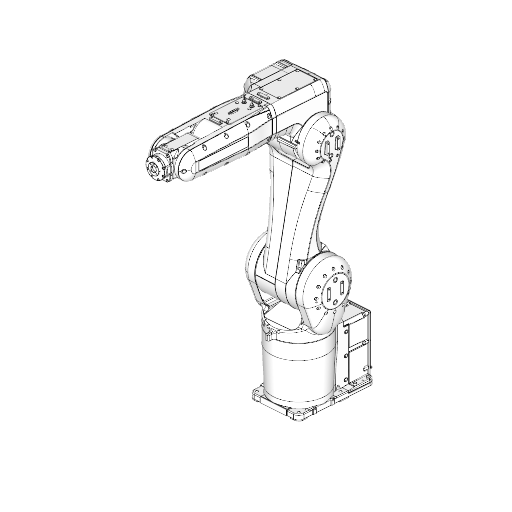

3D View

What are the technology applications of RV-8CRL?

MITSUBISHI RV-8CRL is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MITSUBISHI RV-8CRL: Assembly, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
