Industrial Robot MOTOMAN AR1730 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Motoman

Model

AR1730

Axes

Payload

25 kg

Reach

1730 mm

Repeatability

0.020 mm

Weight

250 kg

Maximum speed

885 deg/s

Speed at rated payload

885 °/s

IP rating

IP54 (body), IP67 (wrist)

Mounting orientation

Ceiling, Wall, Floor

Controller

YRC1000

Power supply

2 kVA

Power consumption

2000 VA

Certifications

IEC standards, JIS B 8432 (repeatability measurement)

Safety functions

Axis Range Limit, Robot Range Limit, Speed Limit, Tool Angle Monitor, Tool Interference Monitoring, Functional Safety I/O (FSU), General Safety Inputs/Outputs

Communication interfaces

Ethernet LAN (multiple LAN ports), FTP, Remote Pendant, Standard Pendant I/O, Safety I/O via Functional Safety Unit

The MOTOMAN AR1730 is a high-performance industrial robot designed for versatility and precision across various applications. Equipped with six axes and a 25 kg payload capacity, this robot features a reach of 1730 mm and a repeatability of 0.020 mm, making it ideal for tasks requiring meticulous accuracy. With an impressive maximum speed of 885 degrees per second and robust safety functions, the AR1730 can be mounted in ceiling, wall, or floor orientations, ensuring seamless integration into any industrial automation setup.

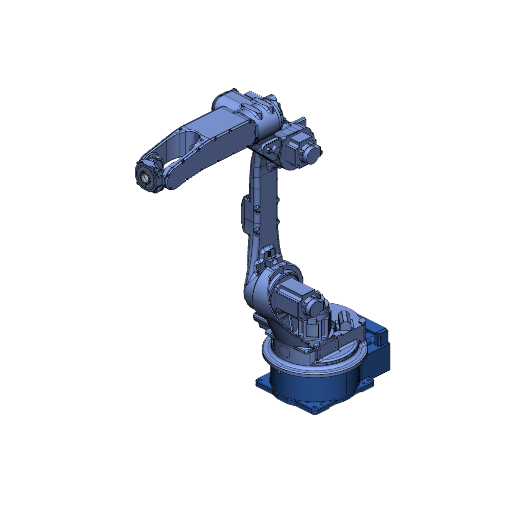

3D View

What are the technology applications of AR1730?

MOTOMAN AR1730 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN AR1730: Assembly, Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
