MOTOMAN GP225

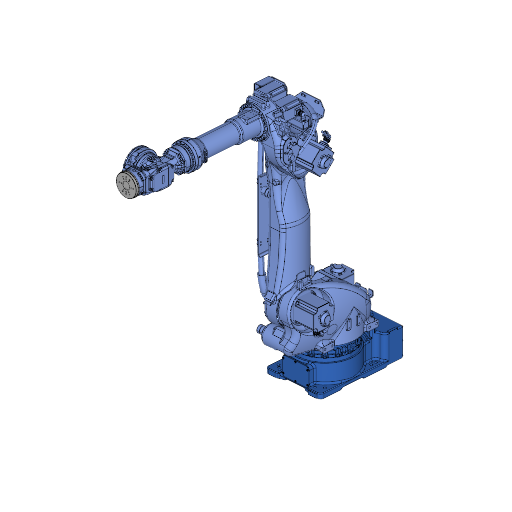

Industrial Robot MOTOMAN GP225

Specifications

Type

Industrial Robot

Brand

Motoman

Model

GP225

Axes

6

Payload

225 kg

Reach

2702 mm

Repeatability

0.05 mm

Weight

1080 kg

Speed at rated payload

220 °/s

IP rating

IP65/67 (wrist) standard body IP54

Mounting orientation

Floor

Controller

YRC1000

Power supply

5 kVA

Power consumption

5 kVA

Certifications

CE, ISO 10218-1

Safety functions

Emergency Stop, Safety I/O, Dual-channel Functional Safety Board, Tool/Axis/Robot Range Limit, Speed Limit, Tool Change Monitor, Tool Angle Monitor

Communication interfaces

Ethernet, USB, Digital & Analog I/O, Fieldbus (Profinet, Profibus, Ethernet/IP, ModbusTCP, DeviceNet, ASI-Bus etc.)

Download MOTOMAN GP225 digital twin

Start for free
The Industrial Robot MOTOMAN GP225 is a versatile 6-axis robotic solution designed for high payload applications, capable of handling up to 225 kg with a reach of 2702 mm. With a remarkable repeatability of 0.05 mm and a maximum speed of 220 degrees per second, this robot is engineered for precision and efficiency in demanding environments. It features robust safety functions and various communication interfaces, ensuring seamless integration into industrial automation systems.
3D View

What are the technology applications of GP225?

MOTOMAN GP225 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN GP225:. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

Frequently asked questions

Can MOTOMAN GP225 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase MOTOMAN GP225 or request a quote, please contact the manufacturer or an authorized local supplier.
