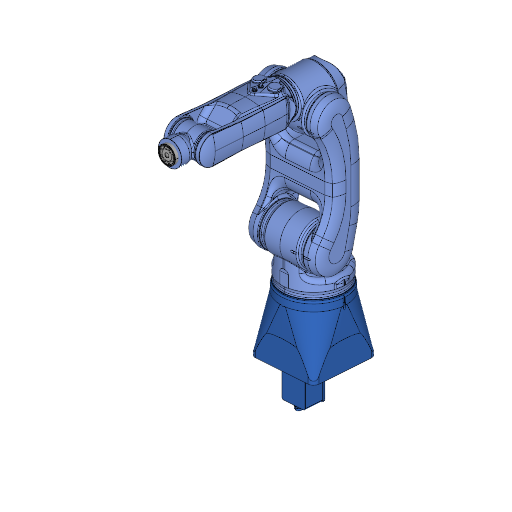

Industrial Robot MOTOMAN HD8 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Motoman

Model

HD8

Axes

Payload

8 kg

Reach

727 mm

Repeatability

0.02 mm

Weight

45 kg

Maximum speed

1000 °/s (T‐axis)

Speed at rated payload

1000 °/s

IP rating

IP69

Mounting orientation

Ceiling, Wall, Floor

Controller

YRC1000 or YRC1000micro

Power supply

1 KVA

Power consumption

1000 VA

Tool flange

Hygienic flange with O-ring groove

Certifications

GMP conform: Class A; EN 1672-2:2005+A1:2009; ISO 14644-1 Class 4

Cleanroom class

Cleanroom class 4 according to ISO 14644-1

Safety functions

Functional safety features including Axis Range Limit, Tool Interference File, Security Level settings via controller safety logic circuit

Communication interfaces

Ethernet connectivity

The Industrial Robot MOTOMAN HD8 is a cutting-edge six-axis robot designed for precision tasks with a payload capacity of 8 kg and a reach of 727 mm. Featuring a remarkable repeatability of 0.02 mm and an impressive maximum speed of 1000 °/s, this versatile robot is IP69 rated and suitable for various mounting orientations, including ceiling, wall, and floor installations. Equipped with the YRC1000 or YRC1000micro controller, the MOTOMAN HD8 is compliant with cleanroom class 4 standards and includes advanced safety features, making it an ideal solution for industries requiring high standards of hygiene and safety.

3D View

What are the technology applications of HD8?

MOTOMAN HD8 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN HD8: Assembly, Deburring, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

MOTOMAN HD8 applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase MOTOMAN HD8 or request a quote, please contact the manufacturer or an authorized local supplier.

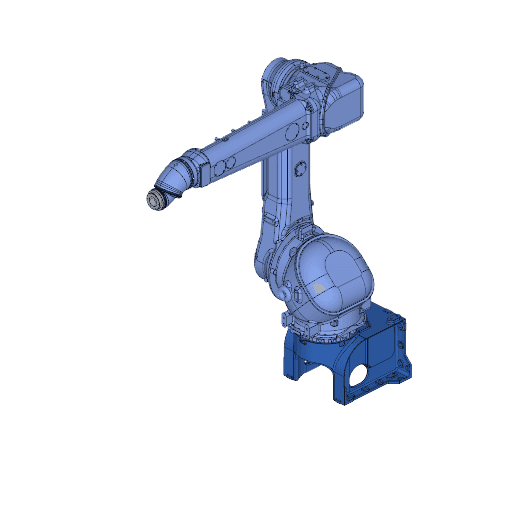

Other Industrial Robot by Motoman
