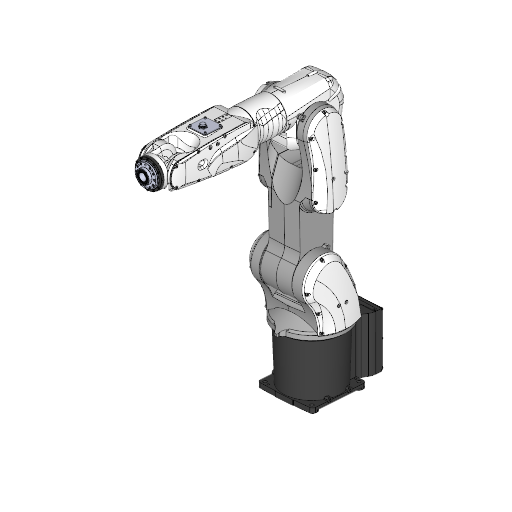

Industrial Robot NACHI MZ07LF-01 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Nachi

Model

MZ07LF-01

Axes

Payload

7 kg

Reach

912 mm

Repeatability

0.02 mm

Weight

43 kg

Maximum speed

1000 °/s

Speed at rated payload

1000 °/s

IP rating

IP67

Mounting orientation

Floor, Wall, Inclined, Inverted (All Directions)

Controller

CFDs Controller

Power supply

1-phase 200-230 V AC, 50/60 Hz

Power consumption

0.4 kVA

Certifications

JIS B 8432 conformance

Cleanroom class

CLASS4

Safety functions

Operating range monitoring; angle monitoring; speed monitoring; stop monitoring

Communication interfaces

ProfiNet (standard); Ethernet/IP; EtherCAT (alternatives)

The Industrial Robot NACHI MZ07LF-01 is a versatile six-axis robot designed for various automation tasks, featuring a payload capacity of 7 kg and a reach of 912 mm. With a remarkable repeatability of 0.02 mm and a top speed of 1000 °/s, this robot excels in precision and efficiency, making it suitable for demanding industrial applications. Additionally, the model offers an IP67 rating for dust and water resistance, as well as multiple mounting orientations, ensuring flexibility and reliability in diverse operational environments.

3D View

What are the technology applications of MZ07LF-01?

NACHI MZ07LF-01 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of NACHI MZ07LF-01: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

NACHI MZ07LF-01 applications programmed with ENCY Robot

Pick and place

Polishing
