Industrial Robot NACHI MZ25-01 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Nachi

Model

MZ25-01

Axes

Payload

25 kg

Reach

1882 mm

Repeatability

0.050 mm

Weight

250 kg

Maximum speed

11.73 rad/s

Speed at rated payload

11.73 rad/s

IP rating

IP67 equivalent

Mounting orientation

Floor, Inverted, Angle

Controller

FD20

Power supply

Three-phase 400 V AC, 50/60 Hz

Power consumption

2.55 kVA

Tool flange

Adapter BCD Ø96/30 M6x8

Certifications

JIS B 8432 conformity

Cleanroom class

ISO 14644-1 Class 4

Safety functions

Robot Monitoring Unit (RMU): operating range monitoring, angle monitoring, speed monitoring, stop monitoring; Safety circuit PL d (Category 3), optional PL e

Communication interfaces

Profinet (standard), Ethernet/IP, EtherCAT

The NACHI MZ25-01 is a highly versatile industrial robot featuring six axes, a payload capacity of 25 kg, and an impressive reach of 1882 mm. With a repeatability of 0.050 mm and a maximum speed of 11.73 rad/s, this robot is designed for precision and efficiency in demanding environments. Equipped with an IP67 equivalent rating and suitable for cleanroom applications classified under ISO 14644-1 Class 4, the NACHI MZ25-01 supports multiple mounting orientations and comes with a robust FD20 controller, making it an ideal choice for a variety of industrial automation tasks.

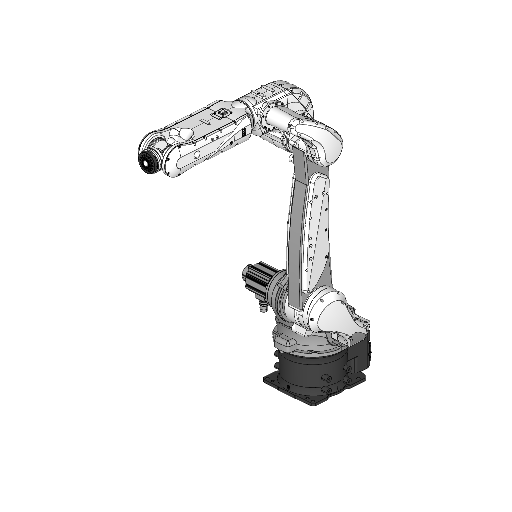

3D View

What are the technology applications of MZ25-01?

NACHI MZ25-01 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of NACHI MZ25-01: Assembly, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

NACHI MZ25-01 applications programmed with ENCY Robot

Pick and place

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase NACHI MZ25-01 or request a quote, please contact the manufacturer or an authorized local supplier.
