Industrial Robot NACHI MZ01-02 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Nachi

Model

MZ01-02

Axes

Payload

1.0 kg

Reach

350 mm

Repeatability

0.020 mm

Weight

10 kg

Maximum speed

10.47 rad/s

Speed at rated payload

10.47 rad/s

IP rating

IP40 equivalent (robot body and upper arm), wire-harness IP65 equivalent, controller IP20 equivalent

Mounting orientation

Floor / Inverted

Controller

CFDs Controller for MZ Series

Power supply

Single-phase 200-230 V AC, 50/60 Hz (Robot controller primary power), also 3-phase ±10% for options

Power consumption

0.4 KVA

Certifications

JIS B8432 repeatability standard; ISO 14644-1 cleanroom standard; safety rating PL d Category-3

Cleanroom class

ISO 14644-1 Class 5 equivalent

Safety functions

PL d Category-3; external emergency stop; protective stop; external enable switch; safety plug

Communication interfaces

Profinet Slave standard; optionally Ethernet/IP, EtherCAT; Controller supports DeviceNet, PROFINET, PROFIBUS, CC-Link

The Industrial Robot NACHI MZ01-02 is a versatile 6-axis automation solution designed for precision tasks with a payload capacity of 1.0 kg and a reach of 350 mm. With a repeatability of 0.020 mm and a maximum speed of 10.47 rad/s, this compact robot weighs 10 kg, ensuring efficiency in various applications. Its robust design includes an IP40 rating for the robot body and upper arm, alongside enhanced wire-harness protection, making it suitable for cleanroom environments classified as ISO 14644-1 Class 5 equivalent.

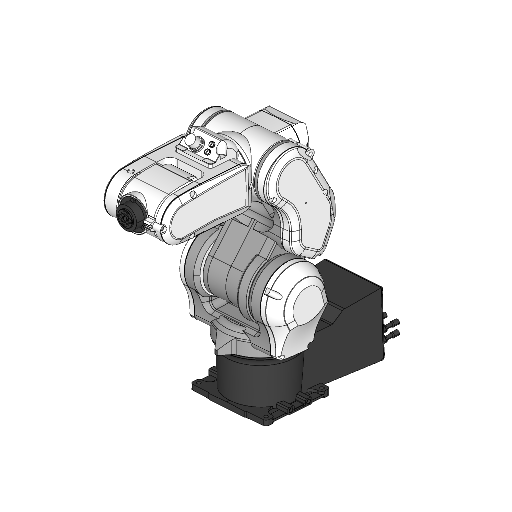

3D View

What are the technology applications of MZ01-02?

NACHI MZ01-02 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of NACHI MZ01-02: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
