Industrial Robot NACHI MC35 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Nachi

Model

MC35

Axes

Payload

35 kg

Reach

2050 mm

Repeatability

0.070 mm

Weight

640 kg

Maximum speed

3.23 rad/s

IP rating

Body: IP54 standard (optional IP65/IP67), Wrist/Arm: IP67 standard

Mounting orientation

Floor mounted

Controller

FD11

The NACHI MC35 is a robust 6-axis industrial robot designed for high-performance automation tasks, capable of handling payloads up to 35 kg. With an impressive reach of 2050 mm and a repeatability of 0.070 mm, this floor-mounted robot excels in precision and speed, featuring a maximum speed of 3.23 rad/s. Built to withstand industrial environments, the MC35 offers an IP54 body rating with optional IP65/IP67, and its advanced FD11 controller ensures seamless integration into various automation systems.

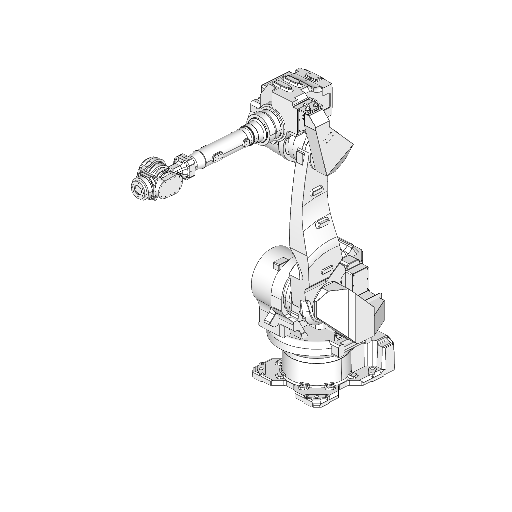

3D View

What are the technology applications of MC35?

NACHI MC35 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of NACHI MC35: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

NACHI MC35 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase NACHI MC35 or request a quote, please contact the manufacturer or an authorized local supplier.
