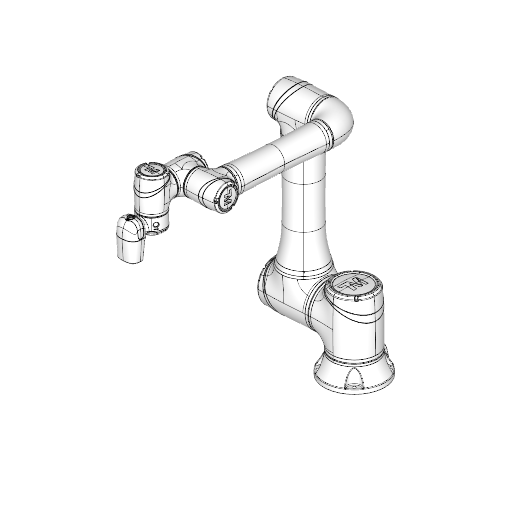

OMRON TM14

Cobot

OMRON6 axesDigital twin for ENCY Robot

About

The OMRON TM14 is a versatile 6-axis collaborative robot that excels in industrial automation applications. With a 14 kg payload capacity and a reach of 1100 mm, this cobot is designed for precise operations, featuring a repeatability of 0.1 mm and a maximum speed of 4 m/s. Its built-in TMFlow control box and robust safety features ensure seamless integration and compliance with collaborative robotics standards, making it a reliable choice for diverse mounting orientations such as wall, table, or ceiling.

What are the technology applications of TM14?

OMRON TM14 is a versatile robot suitable for a wide range of industrial applications. Primary applications of OMRON TM14: Assembly, Deburring, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

OMRON TM14 applications programmed with ENCY Robot

Pick and place

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase OMRON TM14 or request a quote, please contact the manufacturer or an authorized local supplier.

Download OMRON TM14 digital twin

Start for free

Specifications

General

Type: Cobot
Brand: OMRON
Model: TM14
Axes: 6

Performance

Payload: 14 kg
Reach: 1100 mm
Repeatability: 0.1 mm
Weight: 32.5 kg
Maximum speed: 4 m/s
Speed at rated payload: 1.1 m/s

Environment

IP rating: IP54 (robot arm); IP32 (control box); IP40 (robot stick)
Mounting orientation: Wall, Table, Ceiling
Cleanroom class: ISO Class 3

Integration

Controller: Built-in TMFlow control box (hardware version 3.2 or later)
Power supply: 100-240 VAC, 50/60 Hz (AC units); 24-60 VDC (DC units)
Power consumption: 220 W
Tool flange: ISO 9409-1-50-4-M6
Communication interfaces: RS-232/RS-422/RS-485, Ethernet, Modbus TCP/RTU (master & slave), PROFINET (optional), EtherNet/IP (optional)
Safety functions: Cat.3, PL d certified safety functions per ISO 13849-1; ISO 10218-1/TS-15066 collaborative robot safety standards
Certifications: TÜV-certified; ISO 13849-1; ISO 10218-1; ISO/TS 15066; UL1740; CAN/CSA Z424-14; SEMI S2 (optional)
