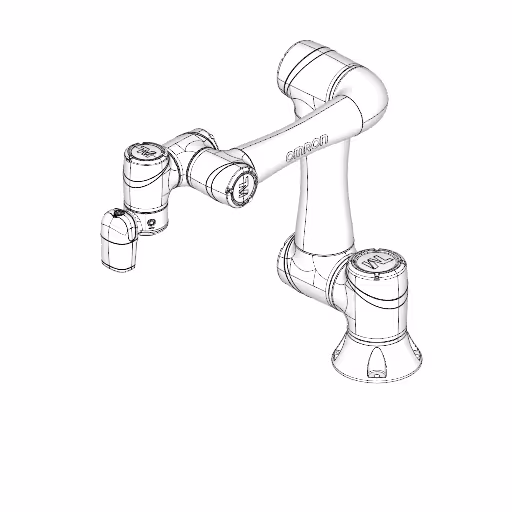

Cobot OMRON TM5-900 Specs and Applications

Specifications

Type

Cobot

Brand

OMRON

Model

TM5-900

Axes

Payload

4 kg

Reach

900 mm

Repeatability

0.05 mm

Weight

22.6 kg

Maximum speed

4 m/s

Speed at rated payload

1.4 m/s

IP rating

IP54 (robot arm); IP32 (control box); IP40 (robot stick)

Mounting orientation

Wall, Table, Ceiling

Controller

Integrated TM control box (OMRON TM Series, Hardware Version 3.2)

Power supply

100-240 VAC, 50/60 Hz or 22-60 VDC

Power consumption

220 W

Tool flange

110 mm diameter with 4× Ø11 (or M10×12) holes; pitch circle Ø155.56 mm; outer diameter Ø177.00 mm

Certifications

ISO 13849-1 PL d, SIL 2, ISO 10218-1, SEMI S2 (optional), UL1740, CAN/CSA Z424-14

Cleanroom class

ISO Class 3

Safety functions

Advanced safety features compliant with ISO 13849-1, ISO 10218-1; Performance Level d; SIL 2

Communication interfaces

RS-232C, RS-422/-485, Ethernet, Modbus TCP/RTU (master & slave), PROFINET (optional), EtherNet/IP (optional)

The OMRON TM5-900 is a highly versatile 6-axis collaborative robot (cobot) designed for industrial automation applications. With a payload capacity of 4 kg and a reach of 900 mm, this compact cobot delivers exceptional precision with a repeatability of 0.05 mm, making it suitable for a variety of tasks in ISO Class 3 cleanroom environments. Equipped with advanced safety features and a robust integrated controller, the OMRON TM5-900 supports multiple mounting orientations and offers a range of communication interfaces to seamlessly integrate into your automation systems.

3D View

What are the technology applications of TM5-900?

OMRON TM5-900 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of OMRON TM5-900: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
