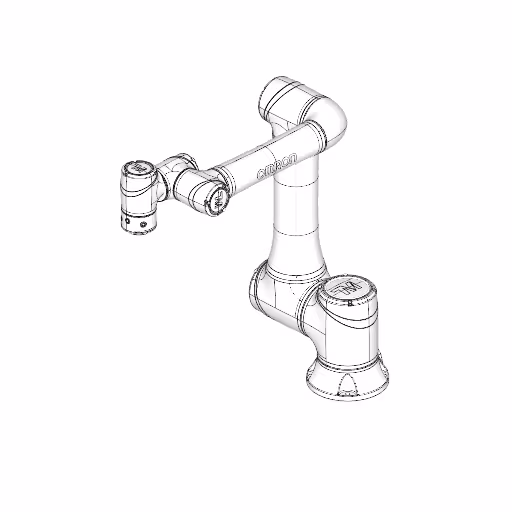

Cobot OMRON TM14X Specs and Applications

Specifications

Type

Cobot

Brand

OMRON

Model

TM14X

Axes

Payload

14 kg

Reach

1100 mm

Repeatability

0.1 mm

Weight

32.5 kg

Maximum speed

1.1 m/s

Speed at rated payload

1.1 m/s

IP rating

IP54 (robot arm), IP32 (control box), IP40 (robot stick)

Mounting orientation

Wall, Table, Ceiling

Power supply

100-240 VAC, 50/60 Hz or 22-60 VDC

Power consumption

300-1500 W

Certifications

ISO 13849-1 PL d Category 3, ISO 10218-1, UL-1740, CAN/CSA Z424-14, SEMI S2 (optional)

Cleanroom class

ISO Class 3

Safety functions

Built-in certified safety functions per ISO 13849-1 PL d, ISO 10218-1

Communication interfaces

RS232, Ethernet (master), Modbus TCP/RTU (master & slave), PROFINET (optional), EtherNet/IP (optional)

The OMRON TM14X is a highly versatile cobot designed for industrial automation applications, featuring 6 axes and a payload capacity of 14 kg. With a reach of 1100 mm and impressive repeatability of 0.1 mm, this cobot delivers precision and efficiency at a maximum speed of 1.1 m/s. Its robust design, suitable for various mounting orientations including wall, table, and ceiling, meets cleanroom requirements of ISO Class 3 and incorporates certified safety functions for enhanced operational reliability.

3D View

What are the technology applications of TM14X?

OMRON TM14X is a versatile robot suitable for a wide range of industrial applications.

Primary applications of OMRON TM14X: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
