ROKAE SR5-5/0.9C

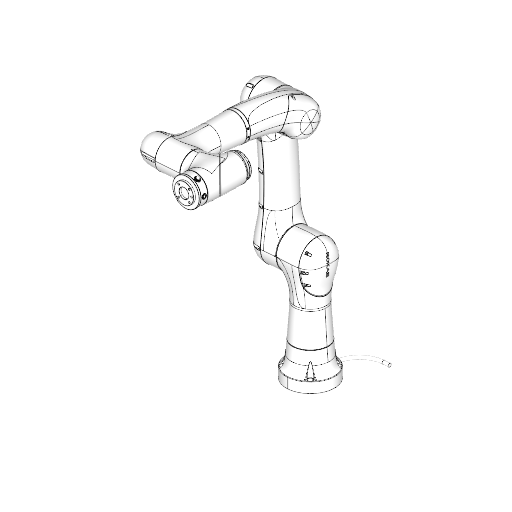

Cobot ROKAE SR5-5/0.9C

Specifications

Type

Cobot

Brand

ROKAE

Model

SR5-5/0.9C

Axes

6

Payload

5 kg

Reach

919 mm

Repeatability

0.03 mm

Weight

16.5 kg

Speed at rated payload

2 m/s

IP rating

IP54

Mounting orientation

Any angle (floor, ceiling, tilt angle)

Controller

LightCab

Power supply

48VDC

Power consumption

225 W

Tool flange

Force & torque sensing tool flange, force in x-y-z; torque in x-y-z

Certifications

TÜV functional safety; ISO 15066; SGS; ISO 10218-1; ISO 13849-1

Cleanroom class

ISO class 5

Safety functions

More than 21 TÜV functional safety features; meets ISO 13849-1, ISO 10218-1 / PL d, Cat. 3; dual-channel redundant sensor monitoring; independently certified safety controller; suction band-type brake

Communication interfaces

2 channels Ethernet, EtherCAT; general digital I/O; analog I/O; incremental encoder signal acquisition (optional)

Download ROKAE SR5-5/0.9C digital twin

Start for free
The Cobot ROKAE SR5-5/0.9C is a versatile 6-axis collaborative robot designed for various industrial automation applications. With a payload capacity of 5 kg and a reach of 919 mm, it ensures precision with a repeatability of 0.03 mm. This lightweight cobot, weighing just 16.5 kg, features a maximum speed of 2 m/s and operates in any mounting orientation, while adhering to rigorous safety standards with over 21 TÜV functional safety features, making it ideal for use in cleanroom environments classified as ISO class 5.
3D View

What are the technology applications of SR5-5/0.9C?

ROKAE SR5-5/0.9C is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ROKAE SR5-5/0.9C:Assembly, Deburring, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

ROKAE SR5-5/0.9C applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

Frequently asked questions

Can ROKAE SR5-5/0.9C be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ROKAE SR5-5/0.9C or request a quote, please contact the manufacturer or an authorized local supplier.
