Cobot ROKAE xMate CR20-C Specs and Applications

Specifications

Type

Cobot

Brand

ROKAE

Model

xMate CR20-C

Axes

Payload

20 kg

Reach

1798 mm

Repeatability

0.05 mm

Weight

71 kg

Maximum speed

3.5 m/s

Speed at rated payload

3.5 m/s

IP rating

IP67

Mounting orientation

All directions

Controller

xMate Control Cab (MCC Controller Cabinet)

Power supply

90-264 VAC, 47-63 Hz / 48 VDC

Power consumption

1000 W

Tool flange

Force x-y-z and Torque x-y-z sensors (tool flange)

Certifications

TÜV certified; ISO 13849-1; ISO 10218-1; ISO 15066; CE; EAC; KC’s

Cleanroom class

ISO Class 5

Safety functions

Built-in independent safety controller; functional safety meets ISO 13849-1:2015 up to PL d, Category 3; over 21 adjustable safety features including collision detection, virtual walls, collaboration mode

Communication interfaces

RS232 ×1; Gigabit Ethernet RJ45 ×1; USB3.0 ×2; HDMI ×1; EtherCAT ×1; supports TCP/IP, Modbus TCP, Profinet, Ethernet/IP, DeviceNet, CC-Link, CC-Link IE Field Basic

The Cobot ROKAE xMate CR20-C is a versatile 6-axis cobot designed for industrial automation, capable of handling a payload of up to 20 kg with a reach of 1798 mm. With precision repeatability of 0.05 mm and a robust IP67 rating, this cobot is suitable for diverse applications in cleanroom environments classified as ISO Class 5. Featuring advanced safety functions, including an independent safety controller and multiple adjustable safety features, the xMate CR20-C ensures reliable performance while supporting a wide range of communication interfaces for seamless integration.

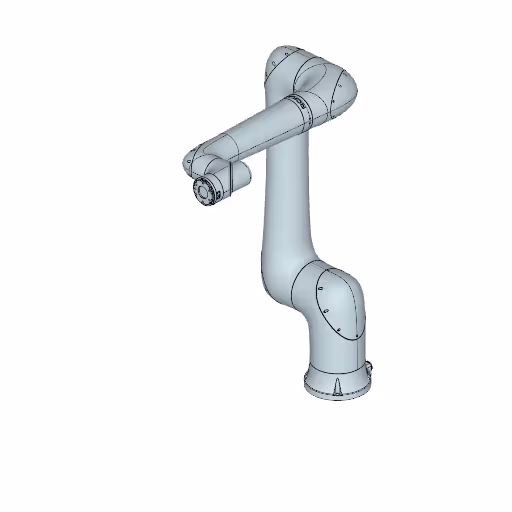

3D View

What are the technology applications of xMate CR20-C?

ROKAE xMate CR20-C is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ROKAE xMate CR20-C: Deburring, Machine Tending, Multiaxis cutting, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
