ROZUM PULSE90

Specifications

Type

Cobot

Brand

ROZUM

Model

PULSE90

Axes

Payload

4 kg

Reach

900 mm

Repeatability

0.1 mm

Weight

13.6 kg

Speed at rated payload

2000 mm/s

IP rating

IP40

Operating temperature range

0…35 °C

Mounting orientation

Floor, Wall, Ceiling, Table

Controller

Control Box (proprietary, with Web interface / REST API / UI / hand-guiding)

Power supply

DC 48 V (robot manipulator models), AC 220–230 V (robot controller)

Power consumption

450 W (maximum)

Tool flange

ISO 9409-1-50-4-M6

Certifications

EAC; ISO 10218-1:2011; ANSI/RIA R15.06

Safety functions

Emergency stop, collision detection, untwisting mode, collaborative-robot safety (side-by-side with humans)

Communication interfaces

REST API over Ethernet, Web interface, digital I/O, relay outputs

Download ROZUM PULSE90 digital twin

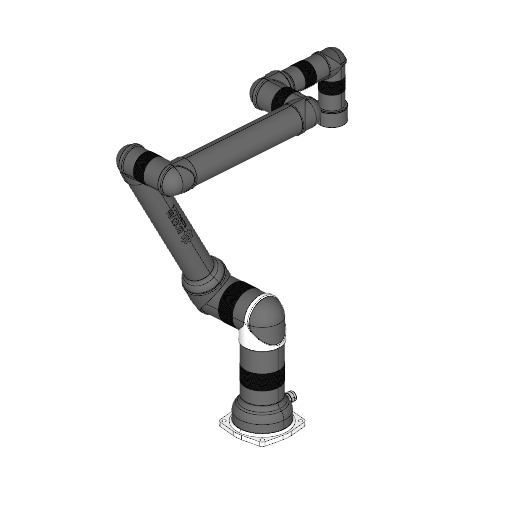

The Cobot ROZUM PULSE90 is a highly versatile 6-axis robotic manipulator designed for industrial automation applications. With a payload capacity of 4 kg and a reach of 900 mm, this collaborative robot offers a repeatability of 0.1 mm and can operate at speeds up to 2000 mm/s, making it ideal for precise tasks in various mounting orientations, including floor, wall, ceiling, and table. Featuring a proprietary control box with a web interface and REST API, the ROZUM PULSE90 ensures seamless integration into existing systems while adhering to essential safety standards such as EAC and ISO 10218-1:2011.

What are the technology applications of PULSE90?

ROZUM PULSE90 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ROZUM PULSE90:Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

ROZUM PULSE90 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot Milling

Frequently asked questions

Can ROZUM PULSE90 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

How can I start programming ROZUM PULSE90 with ENCY Robot?

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

It is possible to install a free version of ENCY Robot and start programming ROZUM PULSE90 with it?

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

How to buy ENCY Robot?

If you would like to purchase ENCY, please contact us for a quote.

Can I purchase ROZUM PULSE90 and get its price from your company?

No. We do not sell robots and do not provide pricing information. To purchase ROZUM PULSE90 or request a quote, please contact the manufacturer or an authorized local supplier.
