Cobot SIASUN GCR10-1300-W Specs and Applications

Specifications

Type

Cobot

Brand

Siasun

Model

GCR10-1300-W

Axes

Payload

10 kg

Reach

1300 mm

Repeatability

0.05 mm

Weight

38 kg

Maximum speed

3.8 m/s

Speed at rated payload

1.5 m/s

IP rating

IP54/IP65

Operating temperature

-10 to 50 °C

Mounting orientation

Installation in any direction

Controller

DC15S control cabinet

Power supply

100-240VAC, 47-63Hz, 10A

Power consumption

400 W

Tool flange

GB/T 14468.1-50-4-M6 (equivalent ISO 9409-1)

Certifications

TÜV SÜD functional safety certification, IEC 61508, ISO 10218-1, IEC 60204-1, ISO 13849-1, IEC/EN 62061, IEC 61800-5-2, IEC 61784-3

Safety functions

Collision detection, force and power detection; functional safety certified by TÜV SÜD, IEC 61508

Communication interfaces

TCP/IP, Modbus/TCP, Profinet, Ethernet/IP, CAN, RS485, LAN, EtherCAT, Incremental encoder signal (A+, A-; B+, B-; Z+, Z-)

The Cobot SIASUN GCR10-1300-W is a versatile six-axis collaborative robot designed for industrial automation, featuring a payload capacity of 10 kg and a reach of 1300 mm. With a repeatability of 0.05 mm and a maximum speed of 3.8 m/s, this cobot is ideal for precise applications across diverse environments, operating efficiently within a temperature range of -10 to 50 °C. Certified for functional safety by TÜV SÜD, the GCR10-1300-W offers robust communication interfaces and flexible mounting options, making it a reliable choice for modern manufacturing and assembly tasks.

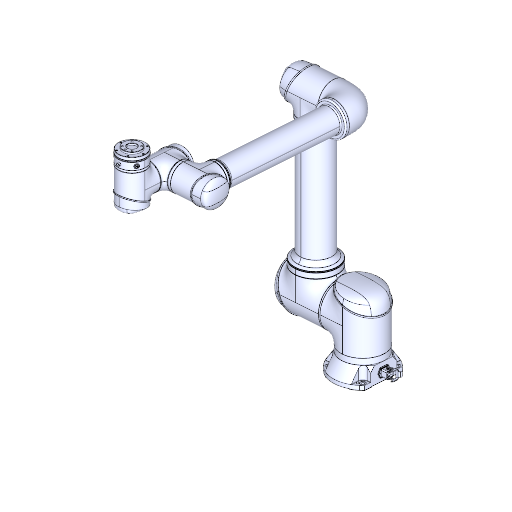

3D View

What are the technology applications of GCR10-1300-W?

SIASUN GCR10-1300-W is a versatile robot suitable for a wide range of industrial applications.

Primary applications of SIASUN GCR10-1300-W: Deburring, Machine Tending, Pick and place, Polishing, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

SIASUN GCR10-1300-W applications programmed with ENCY Robot

Pick and place

Polishing

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase SIASUN GCR10-1300-W or request a quote, please contact the manufacturer or an authorized local supplier.
