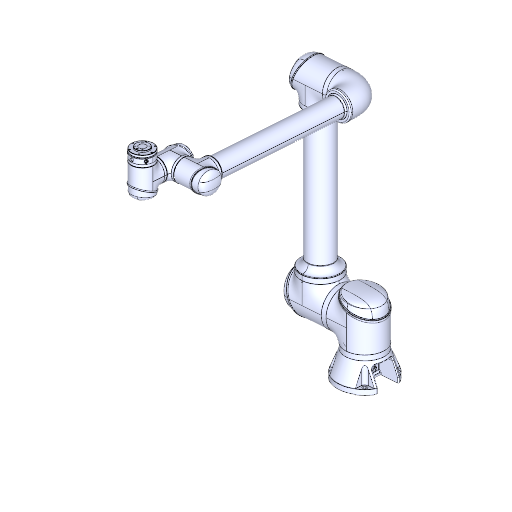

SIASUN GCR25-1800

Specifications

Type

Cobot

Brand

Siasun

Model

GCR25-1800

Axes

Payload

25 kg

Reach

1800 mm

Repeatability

0.05 mm

Weight

61.6 kg

Speed at rated payload

1.5 m/s

IP rating

IP54/IP65

Operating temperature range

-10 to 50 °C

Mounting orientation

Floor-mounted, ceiling-mounted

Power supply

220-240VAC 47-63Hz 10A / 100-200VAC 47-63Hz 16A

Power consumption

600 W

Tool flange

GB/T 14468.1-50-4-M6 (equivalent to ISO 9409-1)

Certifications

TUV SUD functional safety, IEC 61508, plus 16 TUV safety certifications; also company certifications CE, ISO 9001, ISO 14001, UL etc.

Safety functions

Conventional collision detection, force and power detection, functional safety certified by TUV SUD and IEC 61508

Communication interfaces

TCP/IP, Modbus/TCP, Profinet, Ethernet/IP

Download SIASUN GCR25-1800 digital twin

The Cobot SIASUN GCR25-1800 is a state-of-the-art six-axis collaborative robot designed for industrial automation applications, offering a payload capacity of 25 kg and a reach of 1800 mm. With a repeatability of 0.05 mm and a maximum speed of 2.5 m/s, it operates efficiently within an -10 to 50 °C temperature range while maintaining robust IP54/IP65 protection. This floor- or ceiling-mounted robotic solution is equipped with advanced safety features and multiple communication interfaces, ensuring optimal integration and performance in diverse environments.

What are the technology applications of GCR25-1800?

SIASUN GCR25-1800 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of SIASUN GCR25-1800:Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

SIASUN GCR25-1800 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot Milling

Frequently asked questions

Can SIASUN GCR25-1800 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

How can I start programming SIASUN GCR25-1800 with ENCY Robot?

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

It is possible to install a free version of ENCY Robot and start programming SIASUN GCR25-1800 with it?

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

How to buy ENCY Robot?

If you would like to purchase ENCY, please contact us for a quote.

Can I purchase SIASUN GCR25-1800 and get its price from your company?

No. We do not sell robots and do not provide pricing information. To purchase SIASUN GCR25-1800 or request a quote, please contact the manufacturer or an authorized local supplier.
