Cobot SIASUN GCR30-1100 Specs and Applications

Specifications

Type

Cobot

Brand

Siasun

Model

GCR30-1100

Axes

Payload

30 kg

Reach

1100 mm

Repeatability

0.05 mm

Weight

65 kg

Maximum speed

2000 mm/s

Speed at rated payload

1000 mm/s

IP rating

IP54 / IP65

Operating temperature

-10 to 45 °C

Mounting orientation

Any orientation (floor-mounted, ceiling-mounted, etc.)

Power supply

220-240 VAC 47-63 Hz 10 A / 100-200 VAC 47-63 Hz 16 A

Power consumption

600 W

Tool flange

GB/T 14468.1-50-4-M6 (ISO 9409-1-50-4-M6)

Certifications

TÜV SÜD certified, IEC 61508

Safety functions

Emergency stop, Protective stop, Safe Operating Stop (SOS), Joint safe limited position (SLP), Joint safe limited speed (SLS), TCP position limit, etc.

Communication interfaces

TCP/IP, Modbus/TCP, Profinet, Ethernet/IP

The Cobot SIASUN GCR30-1100 is a versatile 6-axis industrial automation component designed to handle payloads of up to 30 kg with a reach of 1100 mm. With a high repeatability of 0.05 mm and a maximum speed of 2000 mm/s, this cobot is suitable for various applications in dynamic environments. It operates efficiently across a temperature range of -10 to 45 °C and features robust IP54/IP65 ratings, ensuring reliable performance in diverse mounting orientations while adhering to strict safety and communication standards.

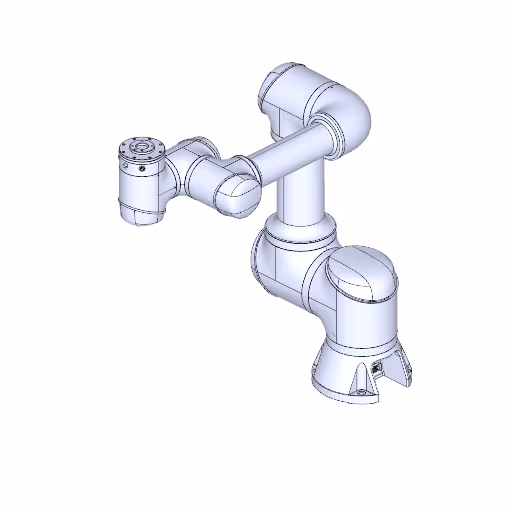

3D View

What are the technology applications of GCR30-1100?

SIASUN GCR30-1100 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of SIASUN GCR30-1100: Assembly, Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

SIASUN GCR30-1100 applications programmed with ENCY Robot

Pick and place

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase SIASUN GCR30-1100 or request a quote, please contact the manufacturer or an authorized local supplier.
