Cobot SIASUN GCR5-910 Specs and Applications

Specifications

Type

Cobot

Brand

Siasun

Model

GCR5-910

Axes

Payload

5 kg

Reach

917 mm

Repeatability

0.02 mm

Weight

21 kg

Maximum speed

3.6 m/s

Speed at rated payload

1.5 m/s

IP rating

IP54/IP65

Operating temperature

-10 to 50 °C

Mounting orientation

Any direction (floor-mounted, ceiling-mounted, inverted, arm-mounted etc.)

Controller

DC15S control cabinet

Power supply

100-240 VAC, 47-63 Hz, 10 A

Power consumption

200 W

Tool flange

GB/T 14468.1-50-4-M6 (equivalent ISO 9409-1)

Certifications

TÜV SÜD functional safety, ISO 10218-1, ISO 15066

Safety functions

Collision detection; force and power monitoring; functional safety with TÜV SÜD certification; conformant with ISO 10218-1, ISO 15066

Communication interfaces

TCP/IP, Modbus/TCP, Profinet, Ethernet/IP, DI, DO, AI/O etc.

The Cobot SIASUN GCR5-910 is a versatile 6-axis collaborative robot designed for industrial automation applications, offering a payload capacity of 5 kg and an impressive reach of 917 mm. With a repeatability of 0.02 mm and a maximum speed of 3.6 m/s, this robust cobot operates efficiently within an extensive temperature range of -10 to 50 °C, while its IP54/IP65 rating ensures protection against dust and water ingress. The SIASUN GCR5-910 supports various mounting orientations and is equipped with a comprehensive safety system certified by TÜV SÜD, making it an ideal solution for safe and flexible automation in diverse industrial environments.

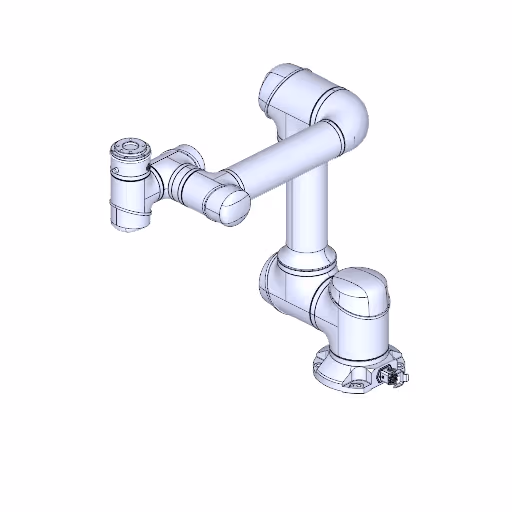

3D View

What are the technology applications of GCR5-910?

SIASUN GCR5-910 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of SIASUN GCR5-910: Assembly, Deburring, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
