Industrial Robot STAUBLI RX160 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Staubli

Model

RX160

Axes

Payload

20 kg

Reach

1710 mm

Repeatability

0.050 mm

Weight

248 kg

Maximum speed

12.3 m/s

Speed at rated payload

10.3 m/s

IP rating

IP65 (wrist) with option for IP67, sealed structure

Operating temperature

5 to 40 °C

Mounting orientation

Floor-mounted / Ceiling-mounted

Controller

Stäubli CS8 series, model CS8C

Power supply

3×400 V or 3×480 V, 50/60 Hz

Power consumption

3000 VA

Certifications

CE, UL, CSA

Cleanroom class

ISO 14644-1 class 5

Safety functions

All axes equipped with brakes; sealed arm; wrist sections with high protection; designed for harsh and high-humidity or sterilizable environments

Communication interfaces

Ethernet; various industrial fieldbuses and interfaces (Modbus RTU/TCP, CANopen, DeviceNet, EtherCAT, Ethernet/IP, POWERLINK, PROFIBUS, PROFINET, SERCOS)

The STAUBLI RX160 is a high-performance industrial robot designed for versatile automation applications. With six axes, a payload capacity of 20 kg, and a reach of 1710 mm, it is ideal for tasks requiring precision and reliability, boasting a repeatability of 0.050 mm. This floor or ceiling-mounted robot operates at speeds up to 12.3 m/s, operates in temperatures from 5 to 40 °C, and features a robust IP65 rating, making it suitable for harsh, high-humidity, or sterilizable environments.

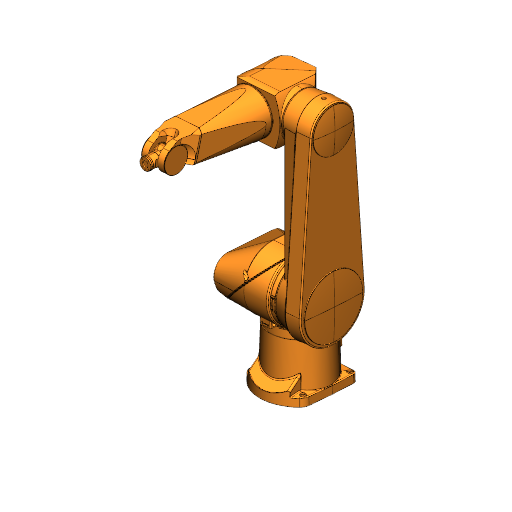

3D View

What are the technology applications of RX160?

STAUBLI RX160 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of STAUBLI RX160: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
