Industrial Robot STAUBLI RX160HD Specs and Applications

Specifications

Type

Industrial Robot

Brand

Staubli

Model

RX160HD

Axes

Payload

20 kg

Reach

1710 mm

Repeatability

0.050 mm

Weight

248 kg

Maximum speed

10.3 m/s

Speed at rated payload

10.3 m/s

IP rating

IP65 (wrist) / IP67 optional

Operating temperature

5 to 40 °C

Mounting orientation

Floor-mounted / Ceiling-mounted

Controller

Stäubli CS8 series, CS8C

Power supply

3×400V AC, 50/60Hz (±10%)

Power consumption

3 kVA

Certifications

CE, CSA, UL

Cleanroom class

ISO 14644-1 Class 5

Communication interfaces

Ethernet, BIO cards, digital I/O

The STAUBLI RX160HD is a high-performance industrial robot featuring 6 axes and a payload capacity of 20 kg, designed for a diverse range of automation applications. With a reach of 1710 mm and a repeatability of 0.050 mm, this robot excels in precision tasks while operating at a maximum speed of 10.3 m/s. It is suitable for floor or ceiling mounting and operates efficiently within an environmental temperature range of 5 to 40 °C, boasting an IP65 rating and optional IP67 for enhanced protection.

3D View

What are the technology applications of RX160HD?

STAUBLI RX160HD is a versatile robot suitable for a wide range of industrial applications.

Primary applications of STAUBLI RX160HD: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

STAUBLI RX160HD applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase STAUBLI RX160HD or request a quote, please contact the manufacturer or an authorized local supplier.

Other Industrial Robot by Staubli

STAUBLI TX2 TOUCH 60 PRESERIAL

Details

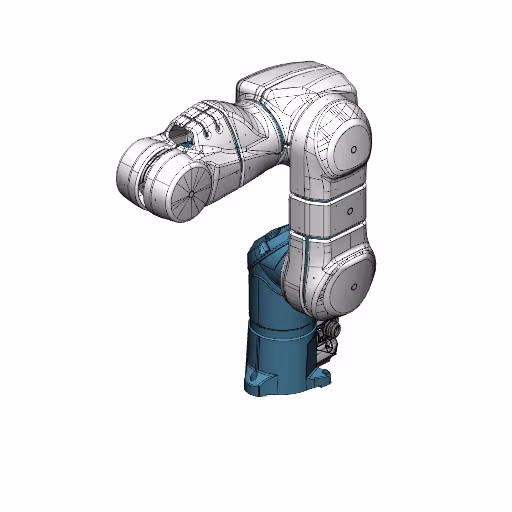

STAUBLI TX2 TOUCH 60L PRESERIAL
