STAUBLI TX2 TOUCH 90 PRESERIAL

Industrial Robot STAUBLI TX2 TOUCH 90 PRESERIAL

Specifications

Type

Industrial Robot

Brand

Staubli

Model

TX2 TOUCH 90 PRESERIAL

Axes

6

Payload

14 kg

Reach

1000 mm

Repeatability

0.030 mm

Weight

114 kg

Speed at rated payload

10900 mm/s

IP rating

IP65 (arm) / IP67 (wrist and optional pressurization kit)

Operating temperature range

+5 to +40 °C

Mounting orientation

Floor-mounted / Wall-mounted / Ceiling-hung / 360° mounting possibility

Controller

CS9

Power supply

3×400-480V, 50/60Hz

Tool flange

ISO 9409, diameter 50 mm

Certifications

SIL3 / PLe, TÜV certified, ISO standards compliance

Cleanroom class

ISO 14644-1 Class 5

Safety functions

Modular safety SIL3 / Power Level e including Safe limited speed, Safe stop, Safe zone, Safe tool

Communication interfaces

EtherCAT, PROFINET, Ethernet-IP, SERCOS, PowerLink, OPC UA, fieldbus real-time Ethernet

Download STAUBLI TX2 TOUCH 90 PRESERIAL digital twin

Start for free
The Industrial Robot STAUBLI TX2 TOUCH 90 PRESERIAL is a high-performance automation component designed for a variety of industrial applications. With six axes, a payload capacity of 14 kg, and a reach of 1000 mm, this robot achieves a remarkable repeatability of 0.030 mm and maximum speeds of 10900 mm/s. Built to operate in environments with temperatures ranging from +5 to +40 °C, it features an IP65 rating for the arm and IP67 for the wrist, ensuring durability and reliability in demanding settings. The robot is compatible with various mounting orientations and comes equipped with advanced safety functions, multiple communication interfaces, and a TÜV certified CS9 controller, making it an ideal choice for precise and efficient automation tasks.

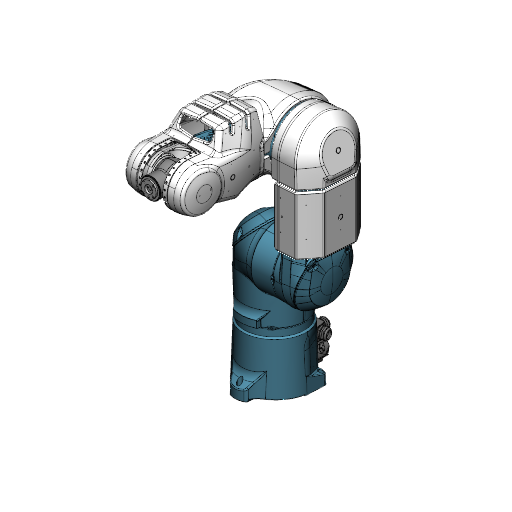

3D View

What are the technology applications of TX2 TOUCH 90 PRESERIAL?

STAUBLI TX2 TOUCH 90 PRESERIAL is a versatile robot suitable for a wide range of industrial applications.

Primary applications of STAUBLI TX2 TOUCH 90 PRESERIAL:Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

STAUBLI TX2 TOUCH 90 PRESERIAL applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can STAUBLI TX2 TOUCH 90 PRESERIAL be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase STAUBLI TX2 TOUCH 90 PRESERIAL or request a quote, please contact the manufacturer or an authorized local supplier.
