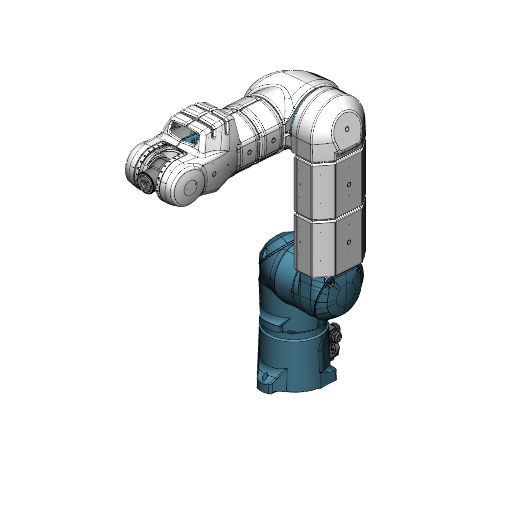

Industrial Robot STAUBLI TX2 TOUCH 90XL PRESERIAL Specs and Applications

Specifications

Type

Industrial Robot

Brand

Staubli

Model

TX2 TOUCH 90XL PRESERIAL

Axes

Payload

7 kg

Reach

1450 mm

Repeatability

0.040 mm

Weight

119 kg

Maximum speed

11.6 m/s

Speed at rated payload

11.6 m/s

IP rating

IP65/IP67

Operating temperature

5 to 40 °C

Mounting orientation

Floor-mounted / Wall-mounted / Ceiling-hung (360° mounting possibility)

Controller

CS9

Power supply

3×400-480V, 50/60Hz

Tool flange

ISO 9409; uses MPS tool changer system for TX2-90XL

Certifications

CE; safety category SIL 3 / PL e; cleanroom / hygienic / ESD / Stericlean / HE / SCR environment variants

Cleanroom class

ISO 14644-1 Class 5

Safety functions

Safe limited speed, Safe stop, Safe zone, Safe tool; optional SIL3-PLe

Communication interfaces

Real-time Ethernet, OPC UA, Ethernet Cat5e, IP67 EtherCat I/O modules, fieldbus options (PROFINET, EtherCAT, etc.)

The Industrial Robot STAUBLI TX2 TOUCH 90XL PRESERIAL is a versatile 6-axis robot designed for demanding automation tasks, with a payload capacity of 7 kg and a reach of 1450 mm. It features a maximum speed of 11.6 m/s and a repeatability of 0.040 mm, making it highly precise and efficient for various applications. The robot supports multiple mounting orientations, operates within a temperature range of 5 to 40 °C, and meets rigorous safety and cleanroom standards, ensuring reliable performance in a wide array of industrial environments.

3D View

What are the technology applications of TX2 TOUCH 90XL PRESERIAL?

STAUBLI TX2 TOUCH 90XL PRESERIAL is a versatile robot suitable for a wide range of industrial applications.

Primary applications of STAUBLI TX2 TOUCH 90XL PRESERIAL: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
