STAUBLI TX2 TOUCH 60 PRESERIAL

Industrial Robot

Staubli6 axesDigital twin for ENCY Robot

About

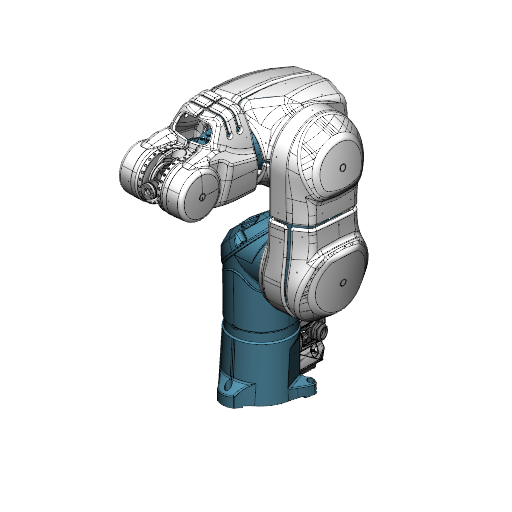

Introducing the Industrial Robot STAUBLI TX2 TOUCH 60 PRESERIAL, a versatile six-axis robotic solution designed for precision and efficiency in automation applications. With a payload capacity of 4.5 kg and a reach of 670 mm, this robot offers a remarkable repeatability of 0.020 mm and a maximum speed of 8400 mm/s, making it ideal for high-speed tasks in various environments. Its robust construction, IP65 rating, and adaptable mounting options ensure reliable performance across multiple settings, while compliance with strict safety and cleanroom standards guarantees safe operation in demanding industrial conditions.

What are the technology applications of TX2 TOUCH 60 PRESERIAL?

STAUBLI TX2 TOUCH 60 PRESERIAL is a versatile robot suitable for a wide range of industrial applications. Primary applications of STAUBLI TX2 TOUCH 60 PRESERIAL: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

STAUBLI TX2 TOUCH 60 PRESERIAL applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase STAUBLI TX2 TOUCH 60 PRESERIAL or request a quote, please contact the manufacturer or an authorized local supplier.

Download STAUBLI TX2 TOUCH 60 PRESERIAL digital twin

Start for free

Specifications

General

Type: Industrial Robot
Brand: Staubli
Model: TX2 TOUCH 60 PRESERIAL
Axes: 6

Performance

Payload: 4.5 kg
Reach: 670 mm
Repeatability: 0.020 mm
Weight: 52.2 kg
Maximum speed: 8400 mm/s
Speed at rated payload: 8400 mm/s

Environment

IP rating: IP65 (IP67 at wrist with pressurization kit)
Operating temperature: 5 to 40 °C
Mounting orientation: Floor-mounted / Wall-mounted / Ceiling-hung (360° mounting possibility)
Cleanroom class: ISO 14644-1 Class 2 (SCR version) or Class 4 (CR version)

Integration

Controller: CS9
Power supply: 200-230V or 400-480V three-phase 50/60Hz or single-phase 115/230V ±10%
Power consumption: 1700 VA
Communication interfaces: EtherCAT; Ethernet real-time; EtherNet/IP; Profinet; Sercos III; Powerlink; Modbus TCP/IP; OPC UA optional; IP67 EtherCAT I/O modules
Safety functions: Safe limited speed; Safe stop; Safe zone; Safe tool (optional, SIL3 / PL e)
Certifications: SIL3 / PL e; CE;
