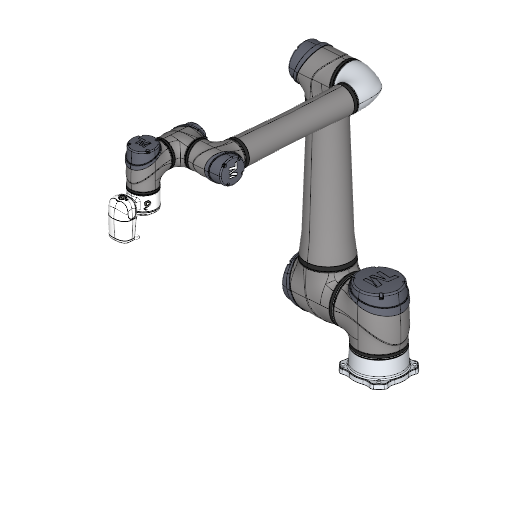

Cobot TECHMAN TM12S Specs and Applications

Specifications

Type

Cobot

Brand

TECHMAN

Model

TM12S

Axes

Payload

12 kg

Reach

1300 mm

Repeatability

0.03 mm

Weight

33.3 kg

Maximum speed

1300 mm/s

Speed at rated payload

1300 mm/s

IP rating

IP65 (Robot Arm), IP54 (Control Box & Robot Stick)

Mounting orientation

Floor, Wall, Ceiling, Upside-down mounting supported

Controller

TM AI Cobot S Series integrated controller

Power supply

100-240 VAC, 50/60 Hz

Power consumption

400 W

Tool flange

ISO 9409-1-50-4-M6

Certifications

CE; ISO 10218-1; ISO 13849-1; ISO/TS 15066; UL (SGS-certified for USA/Canada); Machinery Directive; Declaration of Incorporation

Cleanroom class

ISO Class 3

Safety functions

31 certified safety functions, ISO 13849-1 Cat.3 PL d, TÜV Nord

Communication interfaces

RS-232, Ethernet, Modbus TCP/RTU (master & slave); optional PROFINET, optional EtherNet/IP

The Cobot TECHMAN TM12S is a versatile 6-axis robotic arm designed for industrial automation, featuring a substantial payload capacity of 12 kg and a reach of 1300 mm. With a repeatability of 0.03 mm and an impressive maximum speed of 1300 mm/s, this cobot is ideal for high-precision applications. The TM12S is equipped with an integrated TM AI Cobot S Series controller, supports multiple mounting orientations, and complies with stringent safety and cleanroom standards, making it a reliable choice for various manufacturing environments.

3D View

What are the technology applications of TM12S?

TECHMAN TM12S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TECHMAN TM12S: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
