ENCY 2.5 — What’s New

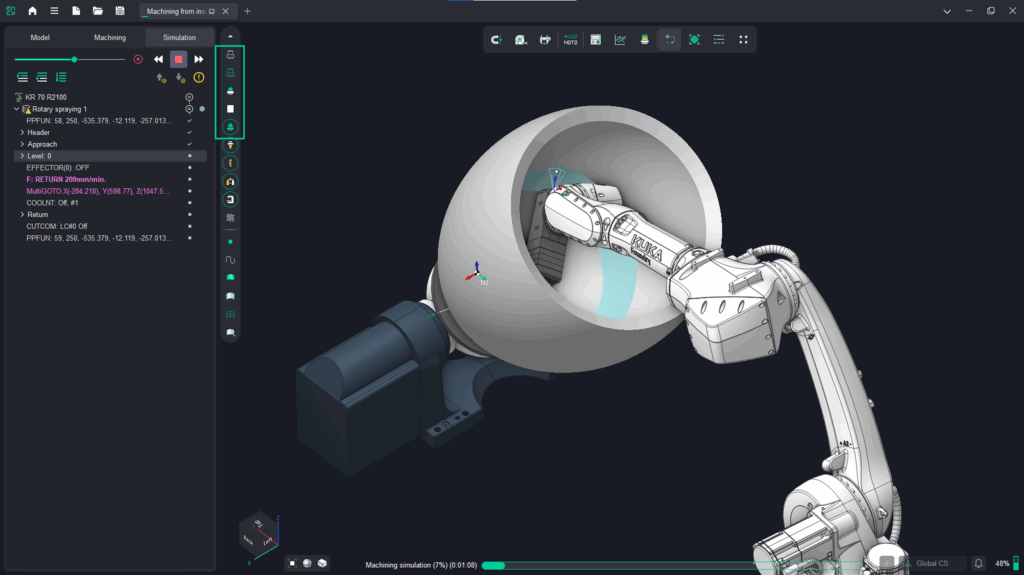

• The part now renders directly during painting simulation, so you can see what’s painted and what isn’t without toggling part visibility.

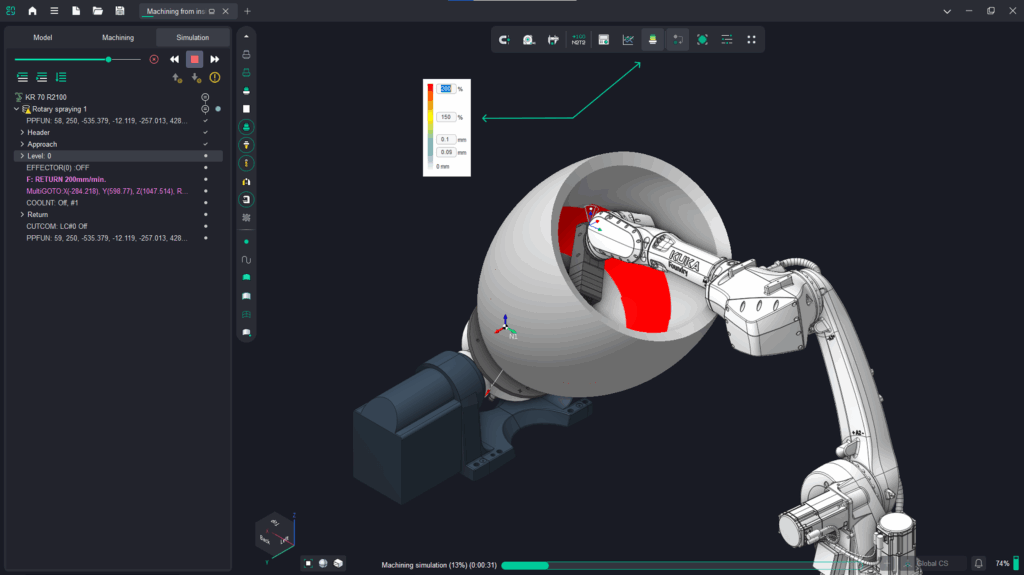

• By default, the simulation shows which areas of the model will be painted (no paint-film thickness gradient). To evaluate thickness, enable “Verify compare” and set a color gradient against a reference.

With a closed contour pre-selected, right-click a face on that contour to access:

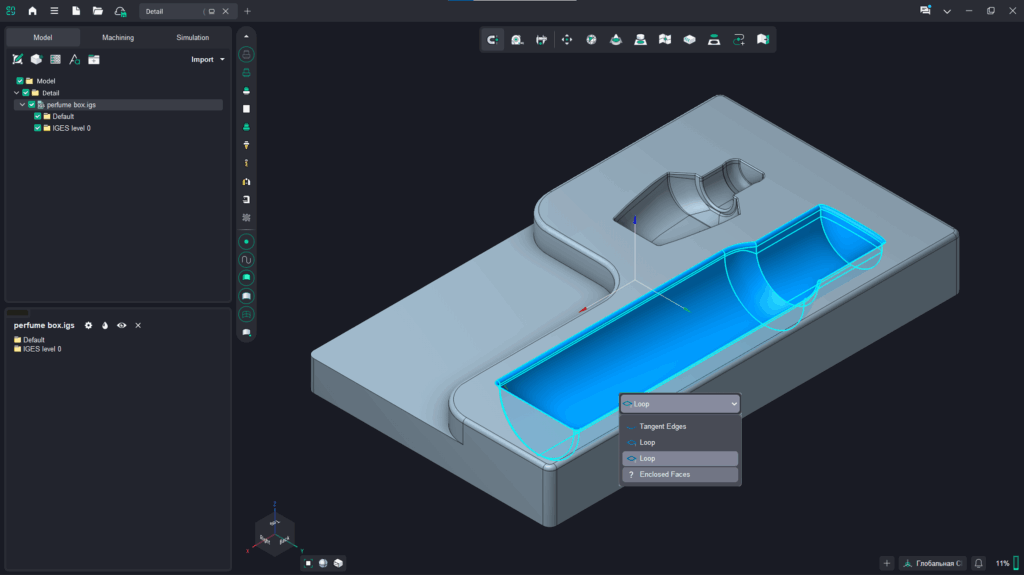

• “Enclosed faces.” Selects all faces inside the closed contour (e.g., the faces of a profile pocket).

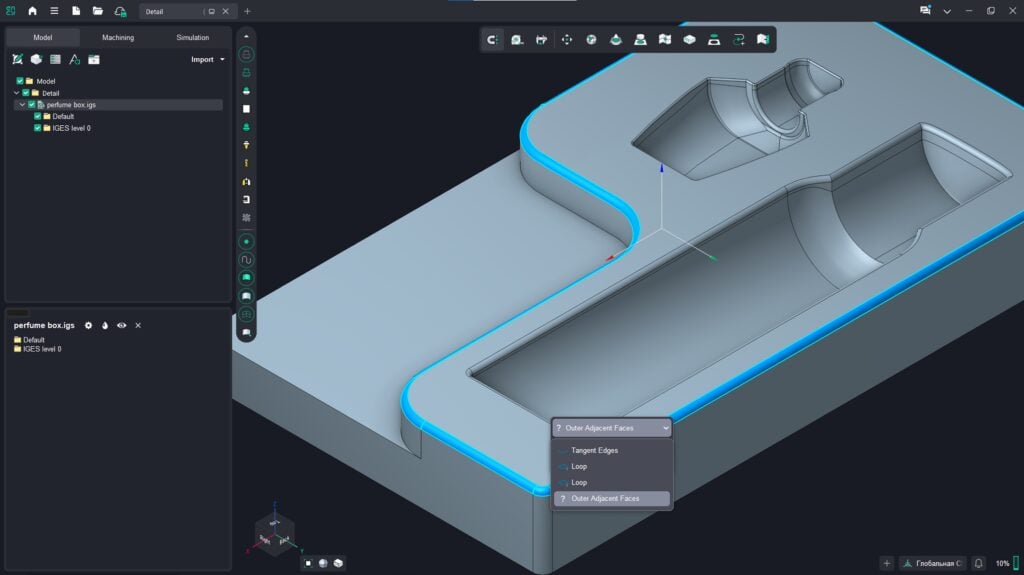

• “Outer adjacent faces.” Selects faces adjacent to the closed contour edges (e.g., edge fillets around the contour).

These options cut multi-face picking down to a single action and reduce selection errors on complex pockets and blends.

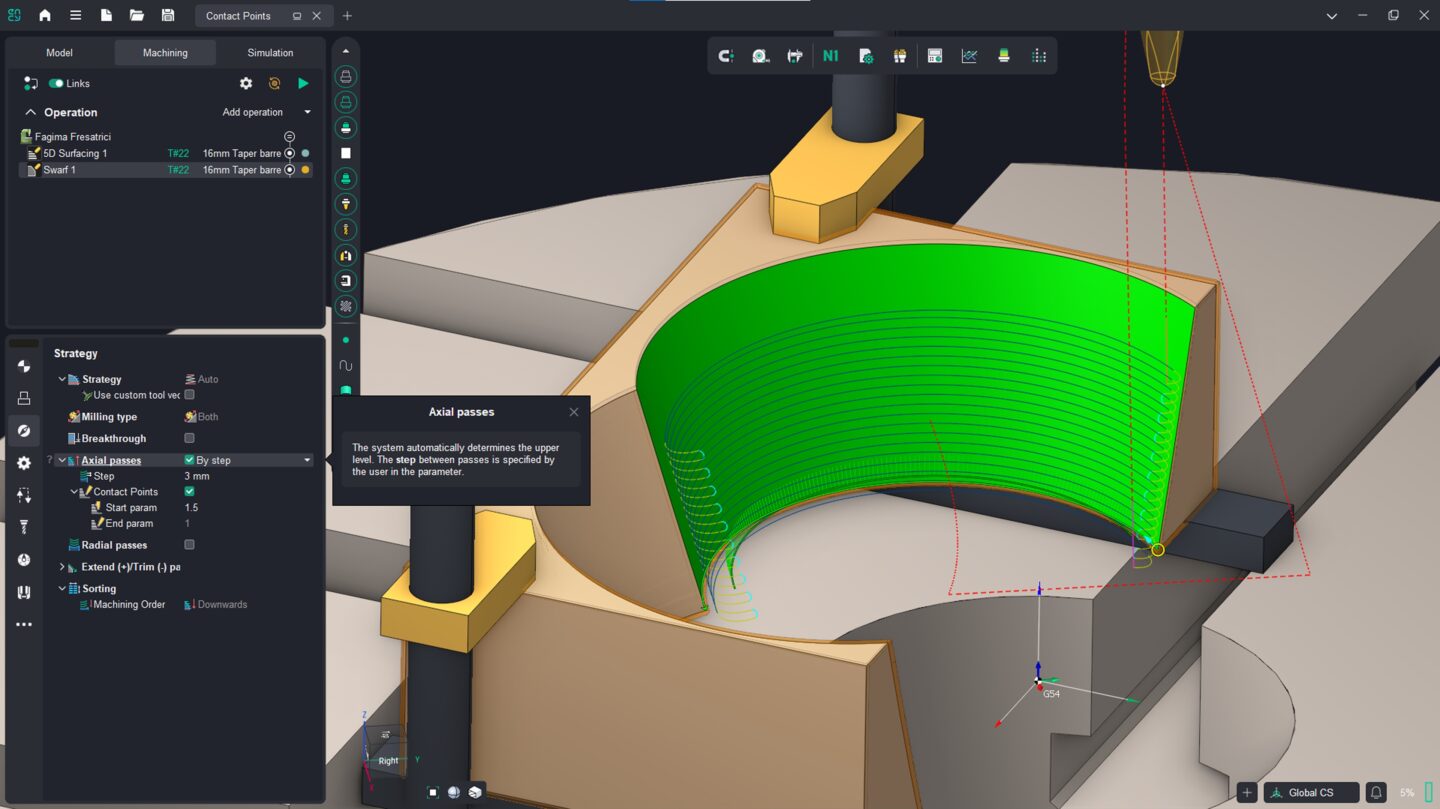

In Axial passes, you can now choose to calculate the toolpath by step size or by pass count. ENCY distributes passes automatically and keeps spacing uniform over the 3D model, improving finish consistency while preserving control over cycle time.

• Hints: refreshed for Pencil, Swarf, Non-planar Slicing, and Threading (OD/ID) operations.
• CLD: added Number of starts for the G92 threading cycle.
• Downloads: the page now always includes links to offline installers.
• Hole Machining: updated hole template dialog and parameter list.
• API: command set updated.
• Selection: improved algorithm for Ctrl+Shift selection behavior.
• 3D model import: improved parallel import pipeline.

We strengthened reliability across project save/open, autosave recovery, and PLM integration — including edge cases with network paths and re-opening recent projects. Simulation is more robust by eliminating false collision reports in certain scenarios. Post-processing is steadier with fixes in the postprocessor generator and bundled (stock) postprocessors, and NC program generation no longer stalls. Platform & UI refinements deliver clearer visuals and smoother list scrolling, with corrections in STEP export, spline geometry, spatial transformations, machining result to 3D model comparison, and targeted fixes in Swarf, Hole Machining, part-geometry selection in multi-part projects, ENCY Tuner 2, and the updater.

Note: The 2.5 update is available to all users with an active software maintenance contract (SMC).
