CNC Mill-Turn Centers: Machine Tools Bridging Turning and Milling

27 Oct 2025

Categories: Blog

Modern shops win on throughput, repeatability, and lead time. A CNC (computer numerical control) mill turn machine — often called a mill turn center — compresses entire routings into a single setup. It merges the symmetry control of a turning machine with the geometric freedom of milling machines, so a part that once bounced between departments can leave the machine done in one. For manufacturing teams across the industry, this is a practical solution that improves precision, efficiency, and consistency on real workpieces.

What are CNC mill turn machines?

A turn mill CNC machine is a numerically controlled platform that performs true turning and full-power milling in one. The base is a lathe machine architecture with a main spindle (and often a sub-spindle) for bar or chuck work. One or more tool systems add live tooling and a milling spindle with linear axes. In a single flow, the machine roughs and finishes diameters, drills on-centre, mills flats and keyways, interpolates bores, indexes features around the circumference, and hands off the part between spindles to machine the “second-op” face — without breaking the datum (reference coordinate system). The result is tighter feature relationships on cylindrical parts and prismatic features alike, using one coordinated program for milling and turning, typically generated in CAD/CAM systems.

Turning vs. milling vs. turn-milling

Turning removes material as the work rotates; the turning process involves presenting a cutting tool to a spinning part to cut material efficiently and accurately. Milling rotates the tool and moves it through multiple axes around a stationary workpiece; the milling process excels at planar and 3D geometry. A turn-mill center does both, coordinating spindles and axes so cylindrical and prismatic features share one setup and one coordinate system. That’s why turn-mill is ideal for complex parts where concentric bores, faces, and flats must hold tight relationships and high product quality.

Compact comparison

Platform Primary motions Typical parts Core strengths Common limits
Turning center (lathe) Workpiece rotation + X/Z tool motion; live tools optional Shafts, bushings, pulleys Roundness, concentricity, cycle time on OD/ID Complex off-axis features require handoffs
Milling center (VMC/HMC) Tool rotation + 3–5 axes of tool/work motion Prismatic housings, plates, molds 3D surfaces, planar accuracy, tool access True roundness/concentricity less natural
Turn-mill center (mill-turn) Dual spindles + linear axes + B/Y for milling; live tools Hybrid parts: valves, connectors, implants One-and-done setups, feature relationships, lead time Higher purchase price, programming complexity

How a CNC turning-milling machine works

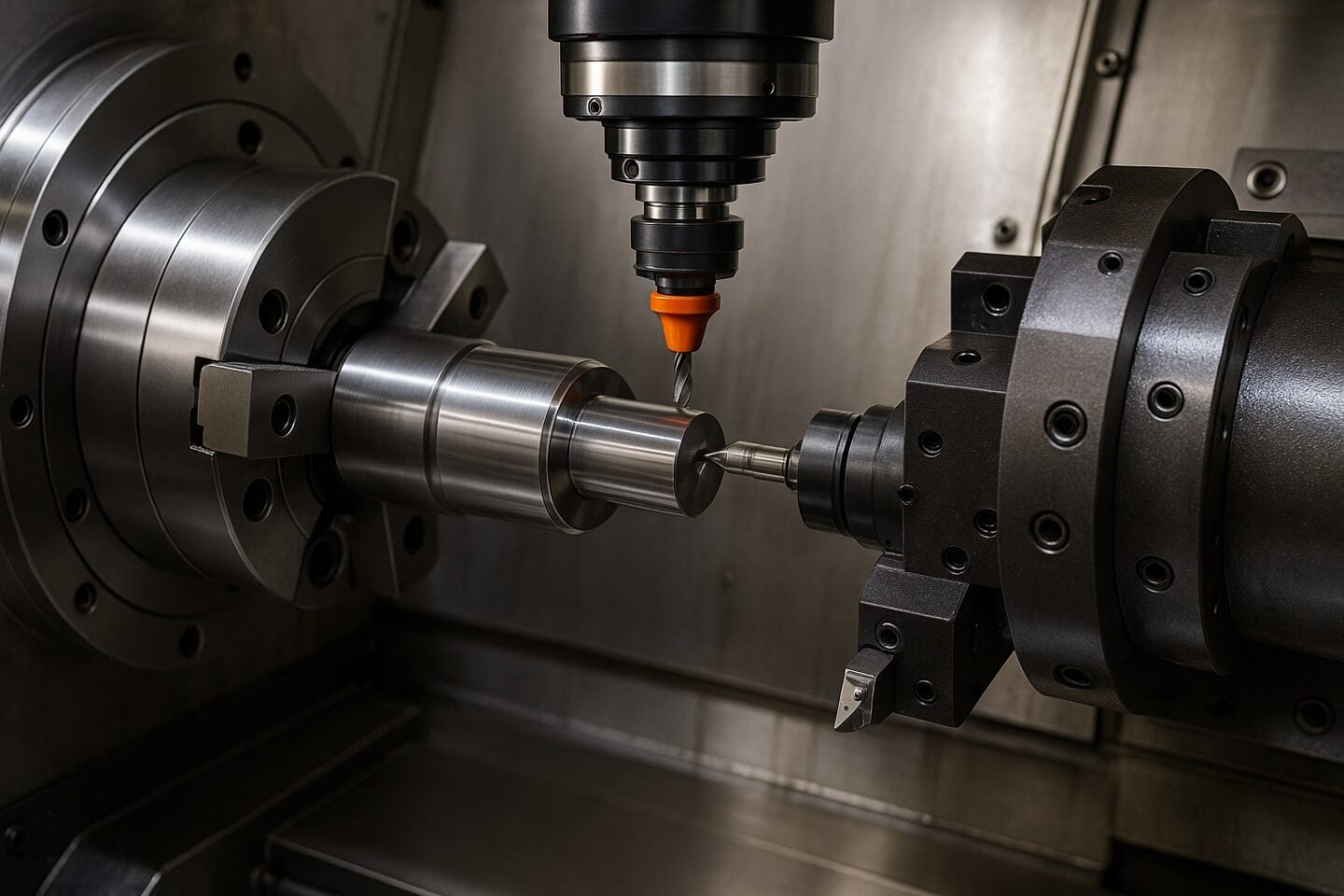

The control orchestrates spindles, axes, probing, and tool systems as one cell. A typical cycle starts by facing, roughing, and finishing the first-op geometry on the main spindle. Live tooling drills cross holes and mills slots indexed around C-axis. The part transfers to the sub-spindle; the machine picks off, faces the back, and finishes remaining features. With a B-axis head and Y-axis, the center can 3+2 locate complex orientations (three linear axes + two positioning axes) or perform limited 5-axis contouring for angled ports. Throughout, probing maintains datums and updates machine data to keep every component tied to a single coordinate frame. The outcome is a reliable process that helps maximize spindle time while the operator supervises multiple cells.

Technical capabilities and specifications

Capabilities vary by class, but several features define the envelope.

Spindles. Expect a high-torque main spindle sized for bar or chuck diameters common to your mix, plus a sub-spindle for back-working. Through-spindle bar capacity determines unattended bar-fed potential. Spindle synchronization enables accurate pick-off (transfer between spindles) and balanced turning between spindles — key to CNC turning and milling in one pass.

Axes. Y-axis on the turret or milling head unlocks true off-centre milling and drilling. A B-axis head adds angular flexibility and multi-face access, useful for angled ports and compound features. C-axis contouring permits polygon turning and gear-like forms with live tools, all on a rigid platform designed for high-performance metal removal.

Tooling systems. Turret-based machines carry live stations for driven tools; head-type machines use a full milling spindle with automatic toolchanger. Through-tool coolant and high-pressure options stabilize chip evacuation and tool life while a cutting tool to remove material is applied at optimal surface speed and feed. Proper choices here optimize stability and maximize uptime.

Automation and reliability. Bar feeders, part catchers, gantry loaders, and industrial robotics extend unattended time. Modern controls capture maintenance prompts and machine data for condition-based decisions, improving reliability and product quality over long runs.

Control and computer-aided manufacturing (CAM). Effective use hinges on post processors that support synchronized spindle control, polar/cylindrical interpolation, and safe tool-change positions. Simulation is essential to validate tool reach, handoffs, and potential collisions in crowded work zones.

What operations can turn-mill centers perform?

Beyond OD/ID turning and facing, these machines handle cross and axial drilling, tapping, keyways, splines, polygon turning, milled flats and hexes, thread milling, helical bores, and angled features with B-axis positioning. On hybrid geometries and workpieces where tolerances stack easily, a single coordinated cycle keeps features aligned. This comprehensive capability set is why many manufacturers adopt turn-mill to streamline manufacturing operations.

Economic advantages and ROI

The business case rests on setup compression, work-in-process (WIP) reduction, and quality at first pass.

Setup and handling. Collapsing two or three setups into one removes non-cutting time: fixture building, queuing, transport, and re-clamping. That time usually dwarfs spindle hours. One-and-done also slashes scrap from datum transfers and stabilizes product quality.

Throughput and lead time. With bar feed and lights-out (fully unattended operation) capability, one machine can replace a cell of separate lathe and mill. Lead time compresses because the part no longer waits between departments.

Quality. Single-datum machining tightens relationships such as runout of a bore to an OD or clocking of a cross hole to a keyway. First-pass yield rises, and inspection becomes simpler.

Costs. Purchase price and programming effort are higher than a single-purpose machine, and tooling packages are denser, but for complex parts the one-cell flow is more efficient and scalable — especially when parts suit subtractive manufacturing. Return on investment (ROI) depends on part mix: hybrid parts, medium-to-high volumes, and frequent changeovers favour turn-mill. Low-mix, high-volume round parts may still favour lathes with simple live tooling; large prismatic parts still belong on mills.

How much does it cost to get something CNC milled?

Per-part cost is a function of machine time, setup time amortized over the lot, tooling and consumables, and overhead. For simple prismatic work on a VMC, the dominant driver is setup and fixturing; for hybrid parts on a CNC turning milling machine, the driver is cycle time plus programming and verification. In practice, a one-off milled bracket can cost more than a complex hybrid part if the latter runs unattended from bar on a turn-mill — demonstrating how consolidated processes elevate your machining economics by aligning rate, volume, and quality. The takeaway: estimate with process in mind — if the part can be completed in one setup with stable cycle time, unit economics often improve even when the hourly rate of a turn-mill is higher.

Selection criteria: turning, milling, or turn-milling?

Start with geometry. If the part is fundamentally rotational with a handful of off-axis features, a lathe with capable live tooling may suffice. If it is fundamentally prismatic with minor turned features, keep it on a mill and outsource turned inserts. True hybrids — connectors with precise bores and flats, pump bodies with concentric fits and angled ports, orthopedic screws with milled heads — belong on turn-mill.

Then consider volumes and changeover. Frequent changeovers, moderate batch sizes, and demand for short lead times favour the one-and-done strategy. Stable, very high volumes of a narrow family may justify dedicated fixtures on separate machines.

Finally, review talent and CAM readiness. Success depends on posts that support synchronized spindles, safe toolpaths in tight spaces, and accurate simulation on a versatile platform. If you lack this foundation, include it in the project scope rather than pushing complexity to the shop floor.

Practical implementation

Begin with a short list of repeat hybrid parts that currently touch both departments. Map routings, measure true setup and wait times, and quantify scrap from datum transfers. Use CAM simulation to draft a one-and-done process, including pick-off, part orientation, and tool-reach checks. Pilot on shop material, verify coordinate measuring machine (CMM) results for feature relationships, and lock offsets and probing cycles before scaling. Build a tooling standard for live stations, define safe tool-change planes, and version-control posts and simulation models so programs remain reproducible. The aim is a reliable, efficient cell that protects operator time while delivering consistent precision.

Done well, multi-functional CNC consolidates processes, stabilizes quality, and frees capacity. The technical challenge shifts upstream to programming and validation, but the payback shows up in lead time, first-pass yield, and predictable unit cost. When your mix includes true hybrids and your customers value speed, a turn-mill center is often the most direct path to “design intent in, finished part out.”

FAQ — direct answers

A machine that combines turning with full-power milling on one platform, coordinating spindles and axes to complete parts in a single setup — a hallmark of milling and turning on one machine.
It depends on cycle time, setup complexity, tooling, and overhead. Parts finished “done-in-one” on a mill turn center often achieve lower unit cost despite a higher hourly rate, because non-cutting time and transfers are eliminated and product quality is stabilized.
Turning rotates the work and excels at cylindrical parts; milling rotates the tool and excels at planar and 3D geometry. A turn-mill centre coordinates both so critical relationships are maintained on the same workpieces.
It sequences turning and milling with synchronized spindles, linear and rotary axes, probing, and live tools. The control manages pick-off and handoff between spindles, updates machine data, and keeps features locked to a single datum for precision and reliability.
