This page looks at Swiss CNC lathes as machines: what they are, how they differ from regular CNC turning centers, which advantages and limitations they bring, which materials they can handle, who builds them, and how to decide whether they fit your production. By the end, you should be able to estimate whether investing in a Swiss lathe machine makes technical and economic sense for your shop.
A Swiss CNC lathe (or Swiss-type CNC lathe) is a sliding-headstock turning machine designed primarily for small-diameter, often long and slender parts with tight tolerances. Instead of clamping a short blank in a chuck, the machine feeds bar stock through a guide bushing mounted close to the cutting tools. The headstock itself slides along Z, pushing or pulling the bar through the bushing as tools cut the emerging material.
Terminology varies: catalogues and shops talk about a “Swiss CNC lathe”, “Swiss CNC lathes”, a “Swiss lathe”, “Swiss type lathe” or even a “Swiss lathe machine”. Technically, all of these are Swiss-type CNC sliding-headstock lathes aimed at high-precision small-part production. You will also see the broader phrases “Swiss CNC machines” or “Swiss turning centers” used for entire families of such turning equipment.
The original idea came from Swiss watchmaking, where manufacturers needed a way to mass-produce tiny, precise components. Modern Swiss CNC lathes take that sliding-headstock concept and add multi-axis control, twin spindles and live tooling so that turning, drilling and milling can all happen in one cycle.
The defining mechanical features of a Swiss CNC lathe are the sliding headstock and guide bushing. On a conventional CNC lathe, the headstock is fixed and the part is held in a chuck or collet; tools move along it and the free length of material can be relatively large. On a Swiss machine, the bar stock passes through the spindle and guide bushing, and the headstock itself moves in Z while the tools sit just in front of the bushing.
Because only a short segment of bar protrudes beyond the bushing at any time, the active cutting zone behaves like a stubby, rigid workpiece even if the finished part is long and thin. The guide bushing supports the material within a millimeter or two of the tool, which allows aggressive feeds and speeds without chatter or deflection on delicate geometries.
Around that core, Swiss turning centers add:
Main and sub-spindles for front-side and back-side work in a single cycle.
Multiple tool zones that can cut simultaneously on main and sub-spindles.
Live tooling for cross-drilling, milling, tapping and polygon turning.
From a programming perspective, the machine is still CNC: you define toolpaths and cycles in your CAM software and post them to the control. The difference is that you must think in terms of channels (parallel cutting groups), synchronized spindle movements and continuous bar feed rather than single-stream turning cycles.
At a high level, both machine classes remove material by rotating a workpiece and moving tools along it. The real differences show up once geometry and process flow get more demanding.
A conventional CNC turning center typically clamps a blank in a chuck, sometimes supporting the far end with a tailstock or steady rest. This is efficient and flexible for short parts or larger diameters, and the machines themselves can be relatively simple. For long, small-diameter parts, however, tool pressure, vibration and runout quickly become limiting factors.
A Swiss CNC lathe inverts those trade-offs. Its sliding headstock and guide bushing make it exceptionally strong on long, slender parts, miniature components and tight tolerance stacks. At the same time it usually accepts smaller bar diameters and is harder to justify for large flanges, short chunky parts or highly varied one-off work.
There is no universal “best CNC lathe in the world.” Instead, there are machines that are “best” for particular envelopes: Swiss-type CNC lathes dominate small, precise, high-volume work; large horizontal lathes or multitasking centers dominate heavy, complex, larger-diameter work.
The main advantage of a Swiss lathe is the combination of precision, stability and process consolidation on parts that would otherwise be difficult or inefficient to run.
Because the work is supported right next to the cut, Swiss machines can hold tight dimensional and geometric tolerances on long, small-diameter features that would bend or chatter on a conventional lathe. This is why they are so prevalent in medical, aerospace and electronics machining, where micron-level tolerances and surface finish requirements are common.
Process consolidation is the second major advantage. With two spindles and multiple live-tool stations, a Swiss CNC lathe can turn, drill, mill, thread and deburr a part in a single clamped cycle. Features that once demanded a mix of lathes, mills and manual finishing become segments of one coordinated program. For many shops, the reduction in WIP, fixturing and handling is where most of the ROI actually comes from.
Finally, bar-fed automation allows realistic lights-out or near lights-out operation for stable Swiss jobs. When paired with bar loaders, part conveyors and, in some cases, industrial robots, a Swiss cell can run significant unattended hours on a proven family of parts, turning one CNC Swiss machine into a compact but very productive node in the line.
The same design that makes Swiss-type machines strong in one area makes them weaker in others.
Most Swiss CNC lathes are limited to relatively small bar diameters, often topping out somewhere in the 20–32 mm range depending on model. That instantly rules out many larger mechanical components and heavy shaft work.
Setup and programming complexity are higher than on a simple 2-axis lathe. You must manage guide bushing selection and adjustment, collet systems, fine tool offsets in a tight work envelope, and multi-channel synchronization. Mistakes are easier to make and harder to debug, especially when several tools are cutting at once.
The machines themselves, together with bar feeders, high-pressure coolant and application-specific tooling, represent a significant capital cost. They also benefit from high-quality, consistent bar stock rather than generic commercial material. For low-volume or very simple parts, the hourly rate and learning curve can outweigh the advantages.
Swiss CNC machines are not general-purpose replacements; they are specialized tools. If your core work is large, short or extremely varied job-shop turning, you will usually get more value from a versatile horizontal or vertical turning center.
A common misconception is that Swiss-type technology is only for brass or free-cutting steels. Modern Swiss CNC lathes and tooling support a broad range of materials. Precision shops routinely machine aluminum, carbon and alloy steels, stainless steels, brass, copper alloys, titanium, nickel-based superalloys and engineering plastics like PEEK, acetal and PTFE.
From a capability standpoint, typical technical characteristics of a Swiss lathe machine include:
Programming these capabilities is done through modern CAD/CAM software. The CAM system must understand each Swiss type lathe’s kinematics, channel structure and synchronization markers to generate safe, efficient code.
When people ask “Who makes Swiss lathes?”, they are really asking about a relatively concentrated group of builders who specialize in sliding-headstock technology.
Among the best-known manufacturers of Swiss CNC lathes are Citizen (Cincom), Star Micronics, Tornos, Tsugami, Hanwha and several regional players. These companies focus heavily on multi-axis, bar-fed machines for high-precision, small-part production.
Different builders tend to differentiate along a few axes: part size and complexity focus (micro-components versus slightly larger industrial work), the depth of automation and connectivity options, and overall price and positioning. Some machine families emphasize maximum axis count and speed; others emphasize robustness and simpler operation at a lower price point.
There is no single “number one” Swiss lathe worldwide. For a specific factory, the “best” machine is the one whose capabilities, reliability, service support and total cost of ownership match its actual and future part mix.
The question “How do I select the right Swiss CNC lathe for my needs?” is ultimately about aligning machine capability with parts, volumes, people and budget.
A practical way to decide starts with your parts. Analyze real drawings or models: diameters, lengths, tolerance stacks, feature density and materials. If a significant portion of your backlog consists of long, small-diameter parts with multiple tight features and recurring orders, a Swiss CNC lathe is a strong candidate.
Next, match those requirements to machine features:
You also need to consider production volume and automation. High, stable volumes often justify more aggressive investment in bar feeders, high-pressure coolant and peripheral equipment. If you plan to integrate industrial robot applications, factor in robot reach, guarding and interfaces upfront; the same applies if you expect to grow a cluster of Swiss CNC machines around the same product family.
Finally, look beyond the spec sheet to support and lifecycle. Service network strength, application engineering support, training availability and the builder’s track record in your specific sector are as important as raw machine capability. A compact CNC Swiss machine with excellent local support can easily outperform a more capable but poorly supported model over its lifetime.
Installing a Swiss CNC lathe is not just a matter of rolling a turning machine onto the floor. Implementation touches programming standards, tooling strategy, bar-stock sourcing and sometimes layout.
On the digital side, most shops standardize on a small number of machine configurations and build robust post-processors and simulation models in their CAD/CAM environment. That allows programmers to treat Swiss machines as part of the same programming ecosystem as mills and other lathes rather than as isolated specialty tools.
On the hardware side, you will define default setups for collets, guide bushings, standard tooling packages and coolant parameters. Over time, stable families of parts migrate onto standardized Swiss setups, where much of the work becomes schedule management and incremental optimization.

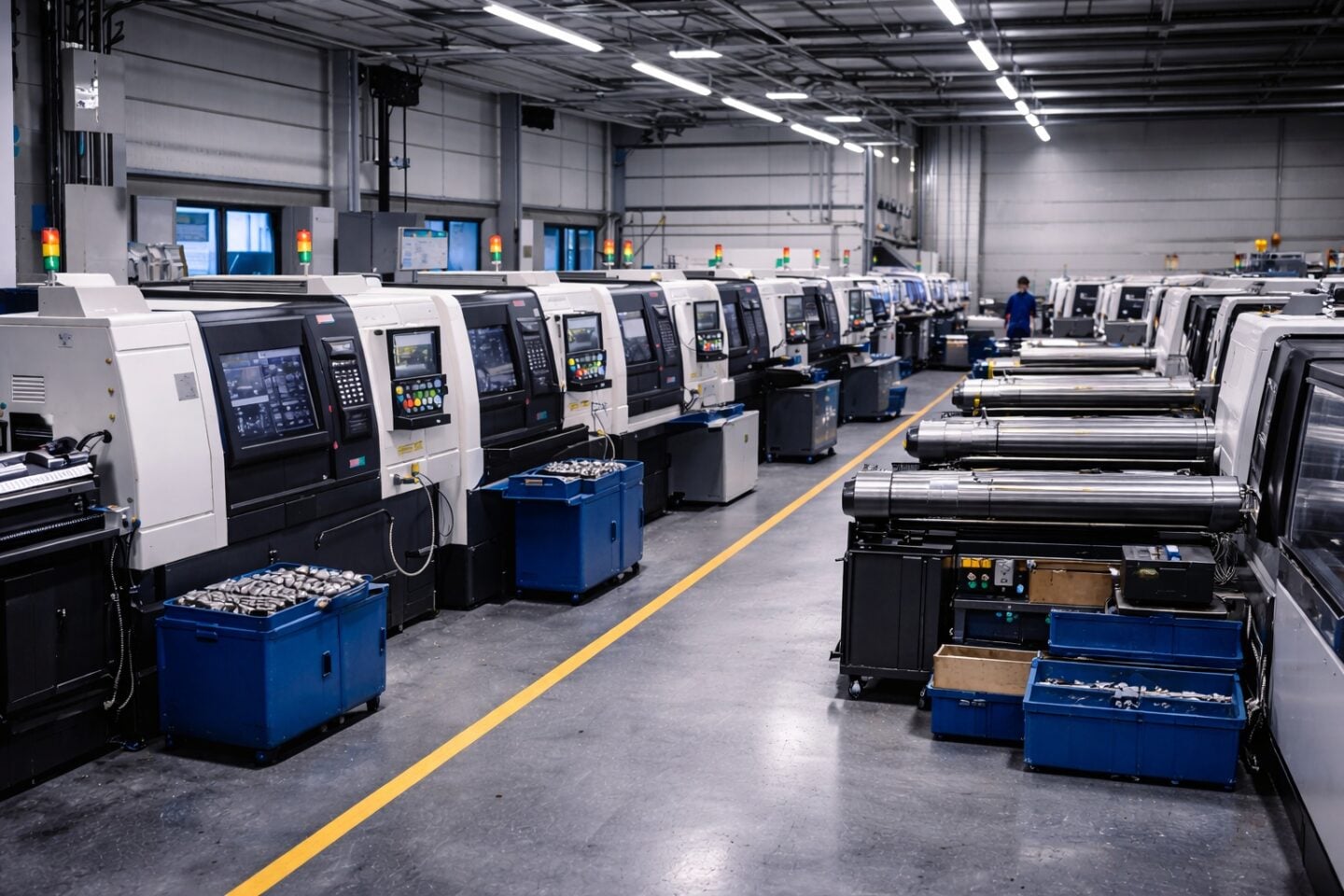

Automation is layered in stages. Initially, bar feeders and part conveyors are enough to extend unattended running. Later, as volumes and confidence grow, shops add robots for tray handling, in-line inspection or packaging. When done carefully, that combination of Swiss turning centers and automation creates compact but highly productive cells for small precision components.
Swiss CNC lathes occupy a specific but important niche in modern machining. They are sliding-headstock, bar-fed turning machines optimized for long, small-diameter and complex parts with demanding tolerances. Their sliding headstock and guide bushing distinguish them mechanically from conventional turning centers and give them a unique combination of rigidity and process scope.
The main reasons to invest in a Swiss lathe machine are its ability to machine difficult geometries, consolidate many operations into one cycle and support highly automated, bar-fed production. The main drawbacks are higher purchase and operating complexity, limited bar diameter and the need for specialized skills and consistent material.
If your portfolio includes many long, small-diameter parts that currently require several operations and machines, it is worth modelling what would happen if a Swiss CNC lathe produced them instead. Using realistic cycle-time estimates from your CAM software, combined with conservative assumptions on scrap, labor and overhead, you can build a grounded ROI case. When the numbers line up, adding the right Swiss lathe or CNC Swiss machine turns a specialized technology into a core production asset in a tightly integrated machining operation.
