If you’re asking “What is milling vs. turning?” or “Is milling the same as turning?” the short answer is: turning (machining turning) rotates the workpiece against a stationary cutting tool; milling rotates the tool against a clamped workpiece while the machine axes move the workpiece and/or spindle to create the required relative motion. Both are subtractive — each removes material (that is, material from a workpiece) — but they solve different problems. In today’s shops, most workflows run under computer numerical control (CNC) and are programmed in CAD/CAM software, so the real question is which path through turning and milling fits your part’s geometry, tolerances, and economics.
In turning, the workpiece spins around its axis while a single-point cutting tool feeds along and across that axis. This kinematic setup naturally produces axisymmetric features: outside/inside diameters (OD/ID), shoulders, grooves, tapers, radii, and threads. Concentricity is straightforward because all critical features reference the spindle axis. Surface finish on cylindrical features can be excellent when cutting speed is appropriate; many shops use constant surface speed (CSS, G96) so that the machine adjusts spindle revolutions per minute (rpm) as diameter changes (e.g., during facing) to maintain consistent cutting speed and predictable roughness. For shafts, bushings, bearing seats, and other cylindrical parts, a lathe is usually the fastest route from stock to size.
Lathes handle bar stock efficiently and keep changeovers short when diameters and lengths vary but part families share a profile. Boring bars and internal grooving tools extend the same logic inside. Most operations follow a clean sequence: face → rough/finish turn → groove/part → thread or bore as required. Concentricity is easy to maintain because all critical features reference the spindle axis.
Multi-tasking lathes (often called turn-mill centers when the base machine is a lathe) add driven tooling, C-axis spindle positioning, and a Y-axis, letting you mill flats, keyways, and simple prismatic details without leaving the machine. Even then, the process is still “turning-centric”: you get the best economics when the core geometry remains round.
Turning generates mostly continuous chips and a steady cutting load, which is gentle on tool edges and can deliver long tool life with stable thermal conditions. Long, slender parts may require steady rests, tailstock support, or anti-vibration boring bars to control chatter and runout. Threading and fine bearing seats are where turning typically outperforms milling in form accuracy (roundness, cylindricity) and functional concentricity.

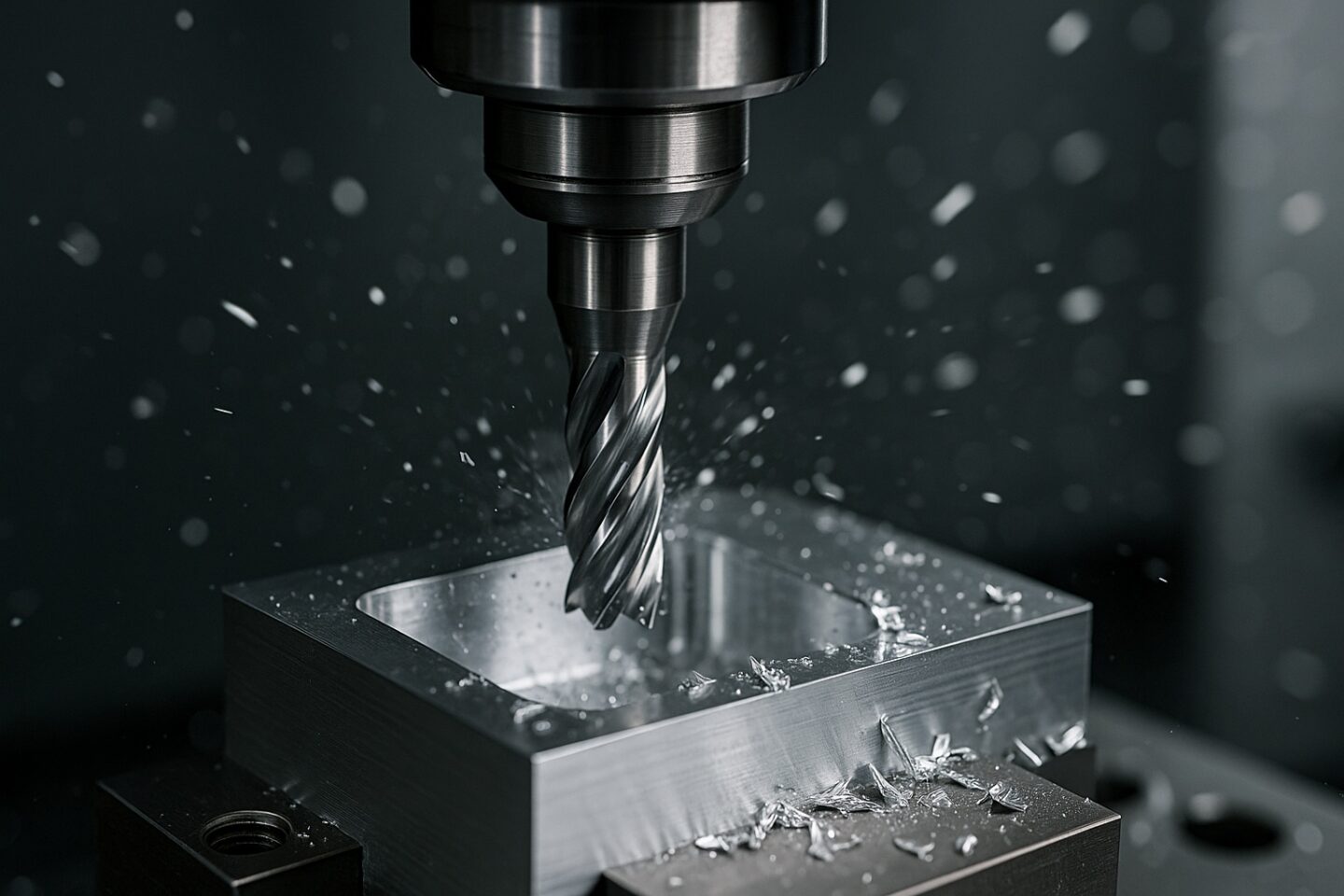

In milling, a rotating cutter — end mill, face mill, or form tool — makes chips while the workpiece is rigidly clamped in a vise or fixture; the relative motion between tool and workpiece is produced by tool rotation plus CNC-controlled linear/rotary axes. This configuration excels at prismatic and freeform shapes: pockets, slots, bosses, planar faces, and sculpted 3D surfaces that turning cannot generate. Multi-axis platforms widen access to undercuts and complex contours and are the backbone of CNC milling for complex housings, brackets, and molds.
Because the tool both rotates and translates, effective cutting speed and chip thickness vary across the flute path. Tool selection, radial/axial engagement, step-over, and coolant/chip evacuation drive accuracy, finish, and tool life. Workholding matters: a rigid, well-supported setup with minimal tool stick-out, solid fixturing, and good chip evacuation is a major determinant of accuracy and throughput.
Modern 4- and 5-axis mills reduce setups by reorienting the part to keep the tool near-normal to the surface and maintain a consistent cutter load. CAM software implements strategies — adaptive/trochoidal roughing, constant-Z finishing, swarf, and contour toolpaths — that translate design intent into predictable cycle times. Because milling is an intermittent cut, tool edges experience cyclic loading and thermal swings; strategies such as small radial engagement with higher feed (to exploit chip-thinning), climb milling on finish passes, and consistent engagement toolpaths help stabilize cutting forces and surface quality.
Terminology note: When the base platform is a mill with turning capability (rotary tables, turning modes on a tilting spindle), many builders call it mill-turn. When the base platform is a lathe with live tooling and Y/B axes, it’s typically called turn-mill. The orientation affects which process is most economical to perform in a single setup.
Turning and milling are both subtractive, but their kinematics and sweet spots differ. Turning is the most direct route to accurate, repeatable round features with excellent concentricity and strong throughput from bar stock. Milling is the most flexible route to planar and 3D geometry, complex pockets, and multi-face parts with minimal re-clamping, especially on multi-axis machines. They are complementary, not interchangeable.
| Aspect | Turning | Milling |
|---|---|---|
| Primary motion | Workpiece rotates; tool feeds | Tool rotates; machine axes position the part and/or spindle |
| Natural geometry | Axisymmetric diameters, tapers, threads | Prismatic/freeform pockets, slots, multi-face 3D surfaces |
| Best surface quality | Round features and bearing seats with CSS and proper feed per revolution (fn) | Planar faces and sculpted surfaces with correct step-over and climb finish |
| Typical throughput | Very high for bar-fed round families | High for multi-face parts; scales with axes, fixturing, and palletization |
| Workholding | Chucks/collets, steady rests, tailstock | Vises, modular fixtures, pallets, tombstones |
| Tooling | Single-point inserts, boring bars, threading tools | Multi-flute end/face mills, form tools, indexable cutters |
| Concentricity / Positioning | Concentricity inherent to spindle axis; excellent roundness/cylindricity | Positional accuracy between faces/holes is strong; round holes via interpolation often need reaming/boring for top form |
| Typical form & tolerance tendencies (rule-of-thumb) | Roundness/total indicator runout in the tens of microns is routine; fine threads and bearing fits are straightforward | Flatness/parallelism across faces is strong; true position between holes/planes is excellent; best circular form requires boring/reaming |
| Process risks & defects | Chatter on slender parts; stringers if chip-breaking is poor; heat concentrated in chip but steady | Edge burrs on exits; intermittent cutting stresses the edge; thin walls can deflect; heat management via engagement is critical |
| Automation enablers | Bar feeders, parts catchers, sub-spindles for “done-in-one” | Pallet pools, tombstones, probing for multi-face families; lights-out on multi-part fixtures |
Geometry first. If the part is primarily round with critical diameters or threads, start with turning. If it is primarily prismatic or has complex pockets and faces, start with milling.
Tolerance and finish. If geometric dimensioning and tolerancing (GD&T) calls out tight roundness, cylindricity, concentricity, or thread form, favor turning and boring on-axis. If it calls out flatness, parallelism, or positional true position across multiple faces, favor milling with robust fixturing, probing, and appropriate finishing step-overs.
Throughput and setup. Bar-fed families of round parts run fastest on lathes; multi-face parts benefit from 4/5-axis mills and palletization to minimize refixturing.
Mixed features. If both worlds are present, prioritize the process that establishes your primary datums (often turning on the spindle axis), then mill features that reference those datums.
A common flow is: face and rough-turn, finish key diameters, then mill flats, keyways, or hole patterns that locate from those diameters. On a turn-mill, you can keep the part on the spindle, probe a reference face, and cut secondary features without sacrificing alignment. On separate machines, preserve datums with precise soft jaws or custom fixtures that pick up the turned features; verify alignment with probing before milling finishes. Where circular holes require top circular form, follow interpolated milling with a boring/reaming step.
Round shafts, bushings, bearing seats, and threaded fasteners are turning territory. Brackets, housings, plates with pocketing, and 3D contoured components belong to milling. Hybrid parts — like a shaft with a keyed flat and bolt circle — benefit from a turn-then-mill sequence or a single-setup turn-mill strategy. In sectors such as aerospace, both methods are routinely combined to create products with demanding tolerance stacks and stringent surface integrity requirements, choosing the process that best matches the required size and shape at each stage. Automation differs: lathes scale with bar feeders, sub-spindles, and parts catchers; mills scale with pallet pools, tombstones, and multi-part fixtures for lights-out runs
