At its core, a robot is a programmable electromechanical system designed to execute a variety of movements or tasks autonomously or semi-autonomously. Industrial robots are driven by control systems and motors, typically structured as articulated arms or gantries, and are guided through software.
To make sense of this broad category, we generally divide robots by their design and application. The four most prominent types are:
Each group solves very different problems, and each brings specific benefits — and limitations — to the table.

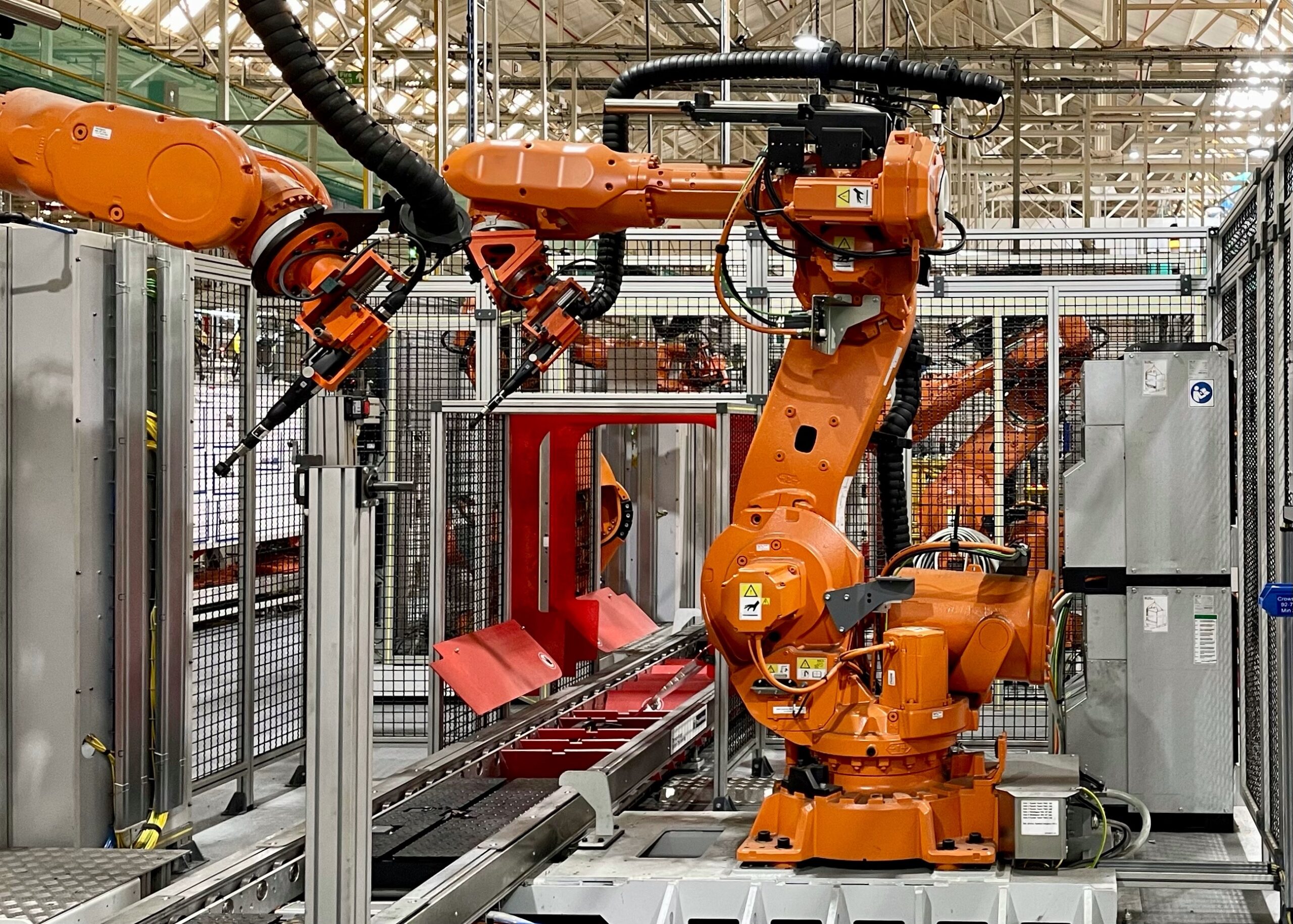

Industrial robots are arguably the most familiar type, particularly in sectors like automotive, aerospace, and metalworking. These machines are built for speed, payload capacity, and repeatability. Most operate in fixed work cells, shielded from human interference, often behind physical barriers or light curtains for safety.
The most common configuration is the six-axis articulated arm. This design allows the end effector — whether a welding torch, cutting head, or gripper — to reach nearly any position and orientation within the work envelope. For more planar tasks, SCARA and Delta robots offer speed advantages, particularly in packaging and pick-and-place operations.
Industrial robots can typically handle payloads from 3 kg to well over 500 kg. Their repeatability can reach down to ±0.02 mm, and they move at speeds exceeding 10 m/s. These specs make them ideal for high-volume, precision-critical tasks such as spot welding, machine tending, or robotic milling. However, these capabilities come with requirements: installation space, rigid infrastructure, external safety systems, and often, complex offline programming software. Also, еhese systems require significant planning: firm foundations, robust power supply (often 3-phase), and, in many cases, pneumatic or hydraulic lines.
In return, companies gain round-the-clock consistency, improved quality, and scalable throughput — especially when the robot is integrated into a broader digital workflow.
Case Example: Volkswagen implemented ABB IRB 6700 robots across its frame welding lines, resulting in a 20% reduction in cycle times and a 15% drop in rework, according to a 2021 case study in Robotics Business Review.

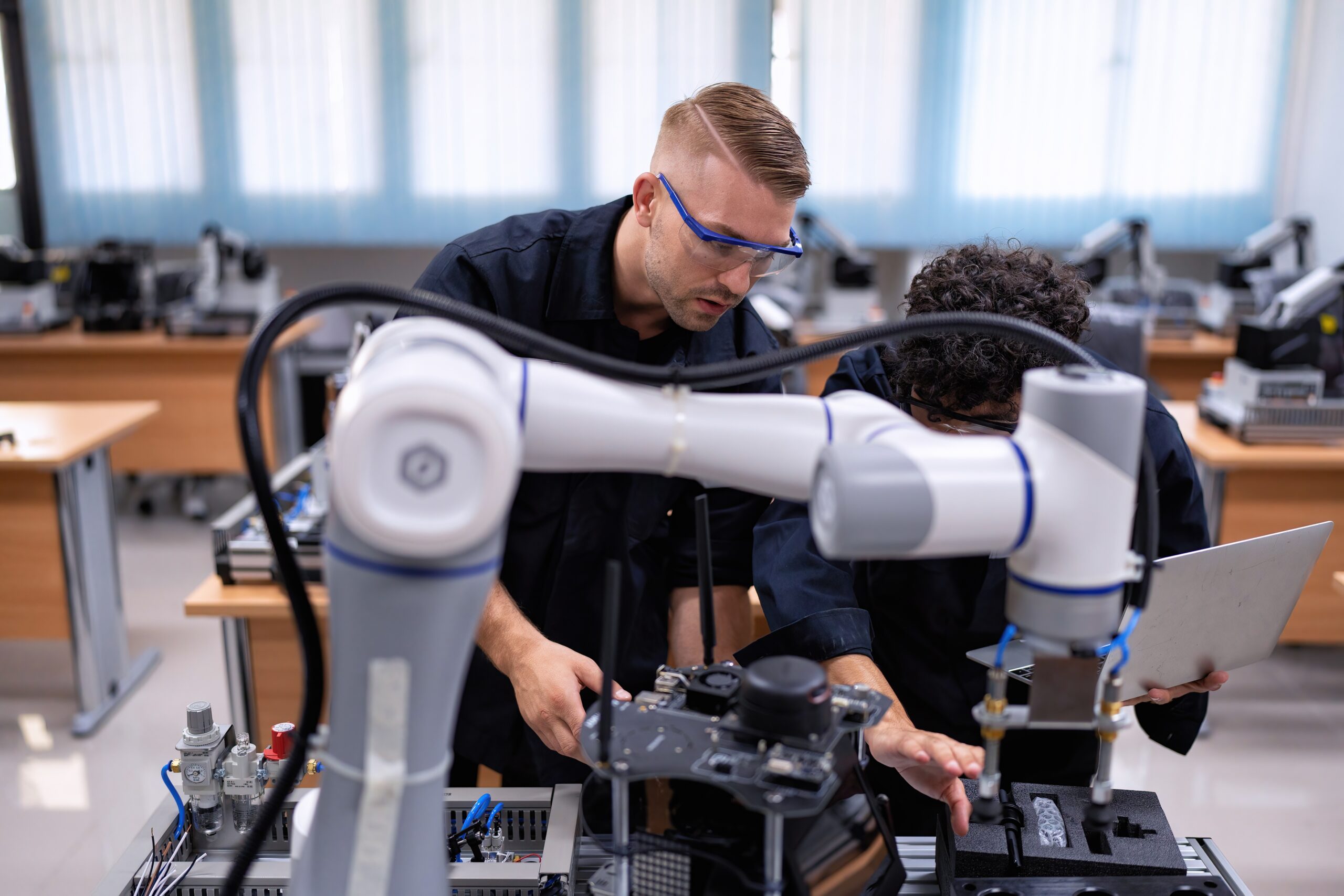

In contrast to their industrial counterparts, collaborative robots — also known as cobots — are built to operate alongside humans. They feature integrated safety mechanisms like force sensing, speed limiters, and collision detection. This allows them to work in open spaces without safety cages, significantly reducing the footprint and cost of deployment.
Cobots usually offer lower payload capacities, typically under 20 kg, and slower operating speeds. But what they lack in power, they make up for in flexibility and ease of use. Most cobots can be programmed through intuitive interfaces or manual “lead-through” teaching, where the operator physically guides the robot through its intended motion.
This makes cobots an ideal fit for small- and medium-sized enterprises (SMEs) looking to automate manual tasks such as light assembly, inspection, packaging, or simple machine tending. Changeovers are quick, which is a huge advantage in high-mix, low-volume production environments.
Beyond manufacturing, cobots are increasingly used in electronics, medical device assembly, and R&D labs where space and safety are paramount.
Deployment Insight: Based on a case study by Universal Robots, Fluidics Instruments, a Dutch manufacturer of oil burner components, deployed a fleet of UR cobots — including UR10e models — to automate tasks such as PCB testing and packaging. This strategic implementation enabled the company to boost daily throughput by 27% and enhance product traceability using integrated vision systems — all without increasing headcount.
Stepping outside the confines of traditional manufacturing, service and special-purpose robots represent some of the most innovative use cases in modern automation. Unlike their industrial relatives, these systems are built for adaptability, interaction, and mobility.

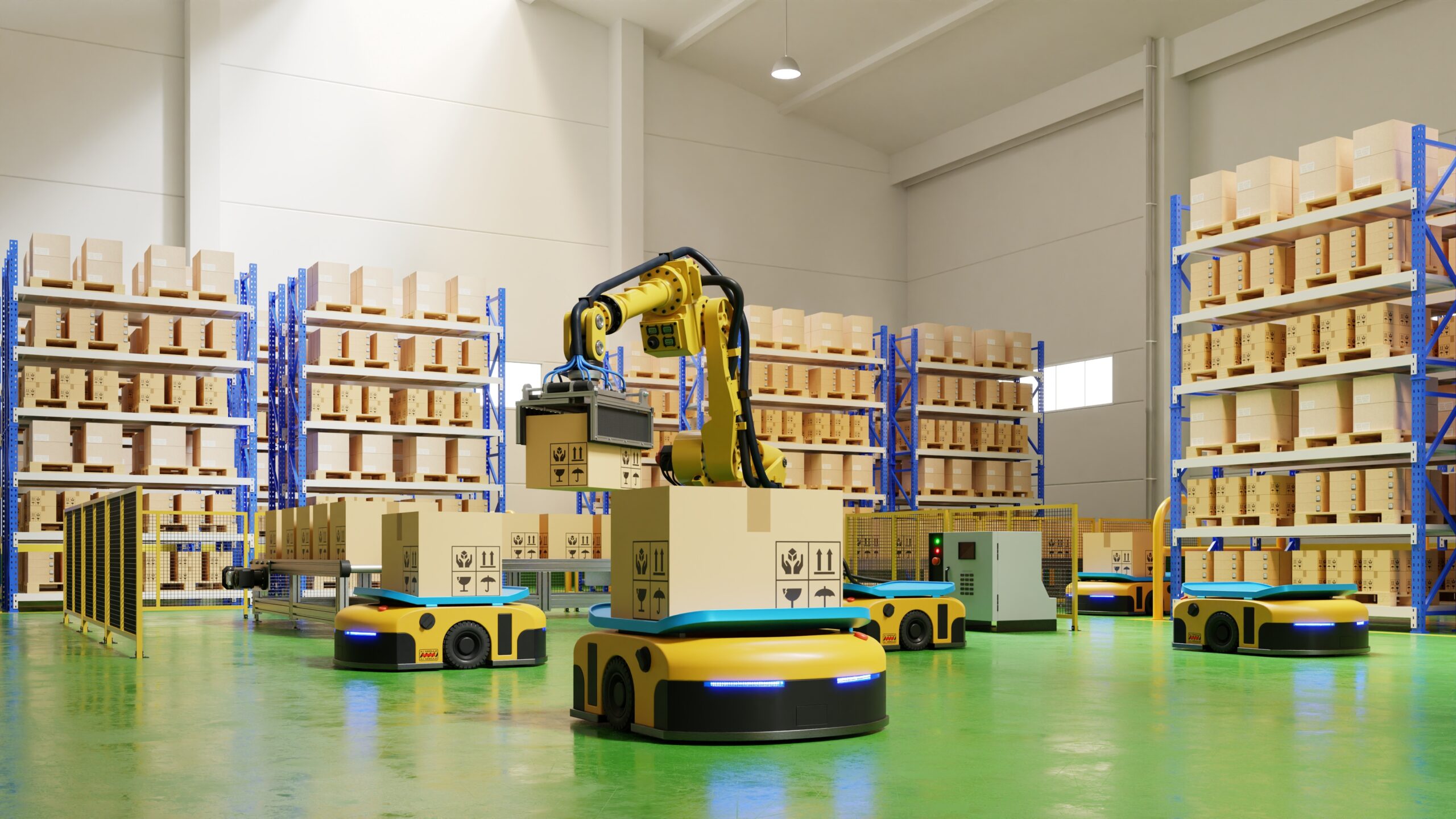

In logistics, for instance, autonomous mobile robots (AMRs) navigate warehouses to manage inventory or deliver goods. In healthcare, robotic systems assist in surgery, rehabilitation, and even disinfection. Educational robots support STEM training, and search-and-rescue robots operate in disaster zones, often under remote control or with semi-autonomous capabilities.
These robots are typically built with advanced sensors, environmental mapping systems, and in many cases, AI algorithms to process unstructured data. They’re less standardized and more application-specific, often involving custom hardware and control software.
Choosing such a robot is not just about mechanical specs — it requires a deep understanding of the operating environment, user interaction needs, and integration with digital systems. These robots rely heavily on advanced software and often require wireless networks, cloud-based monitoring, and IoT integration.
Field Example: In early 2023, a Japanese hospital adopted the da Vinci Xi surgical system. Within 12 months, it reported a 30% reduction in average surgery time and significantly faster patient recovery, as cited by Nikkei Robotics.
To make sense of the options, let’s consider the comparative characteristics of each type. While generalizations have their limits, the table below outlines key performance factors:
Feature | Industrial Robots | Cobots | Service/Special-Purpose Robots |
---|---|---|---|
Payload Capacity | Up to 500+ kg | Typically <20 kg | Varies widely |
Repeatability | ±0.02 – ±0.1 mm | ±0.03 – ±0.1 mm | Application-dependent |
Programming | Teach pendant / OLP | Manual / Visual interface | Custom or semi-autonomous |
Safety | External systems required | Built-in | Context-specific |
Deployment Time | Weeks | Days | Varies from hours to months |
Ideal Use Case | Mass production | Agile, mixed workflows | Specialized or mobile tasks |
As seen here, there is no one-size-fits-all solution. The right robot depends entirely on your goals, constraints, and workflow.
One of the key considerations when adopting robotics is how the system will be programmed. This directly impacts setup time, flexibility, and the skill level required from your team.
Traditionally, robots are programmed using online methods, where the operator moves the robot manually using a handheld teach pendant, storing positions point by point. This approach is straightforward and well-suited to simple, repetitive tasks — but it can be slow and interrupts production during setup.

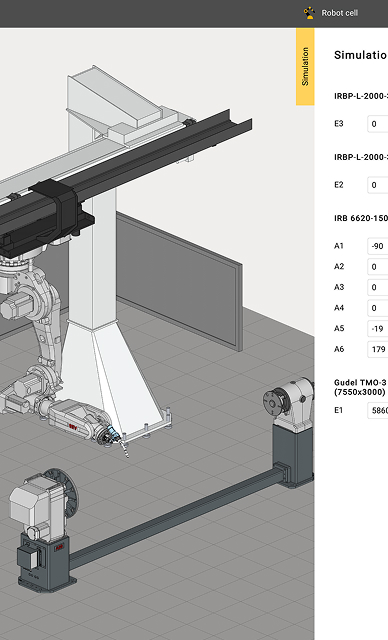

More advanced facilities rely on offline programming (OLP). In this method, the robot’s movements are simulated and programmed in a virtual 3D environment, often based on CAD models. This allows engineers to plan complex toolpaths, simulate real-world behavior, detect collisions, and verify reachability before deploying the program to the physical robot.
Offline programming is particularly valuable for multi-axis machining, welding, painting, or other path-sensitive operations. It also enables companies to prepare new programs while the robot continues working — maximizing uptime and responsiveness.
Selecting a robot should start not with catalog specifications, but with a clear definition of the task. What are the payload and precision requirements? What materials are being handled? What is the expected volume and variety of parts?
You’ll also need to consider your production environment: is there space for a fenced cell? Are there skilled programmers on staff, or do you need a more intuitive interface? Do you require flexible reprogramming or fixed cycle execution?
Another critical point is cost. But not just the sticker price. Total cost of ownership includes integration, tooling, software, training, and maintenance. Similarly, return on investment (ROI) varies by task — routine welding may pay off in under a year, while robotic polishing for artistic moldmaking could take longer but deliver unique value.
In all cases, prototyping, simulation, and stakeholder training are essential steps before full-scale deployment.
Successfully implementing robotics in an industrial environment goes far beyond purchasing and installing the equipment. A common pitfall among manufacturers is underestimating the foundational requirements that support effective robot deployment.
From a technical standpoint, the physical infrastructure must be tailored to the robot’s specifications. In the case of heavy-duty robotic arms used for tasks such as arc welding or large-scale material handling, a stable and vibration-free foundation is essential. Precision depends not only on mechanical repeatability but also on the robot’s ability to operate within a consistent spatial framework. If the base shifts even slightly, the entire coordinate system becomes misaligned, affecting the accuracy of every programmed movement. Electrical requirements are equally critical; many robotic systems operate on industrial three-phase power and may also depend on compressed air or hydraulic lines, depending on the end effectors or auxiliary systems involved.
Connectivity plays an increasingly central role. In modern production environments, robots are not isolated assets but integrated components of broader digital ecosystems. This calls for reliable industrial networking infrastructure to support communication with machine tools, sensors, and higher-level systems such as MES or ERP platforms.
Equally important is human capital. Robot integration introduces new responsibilities that must be supported by appropriate training and role development. Skilled personnel are required not only to operate the systems but also to program, troubleshoot, and maintain them. In many cases, programmers must become proficient in robot-specific languages — such as KRL for KUKA or RAPID for ABB — while operators need to understand user interfaces, error handling procedures, and safe restart protocols. Training durations vary but typically range from several days for basic operation to several weeks for advanced programming and integration.
Maintenance planning is another essential element. Robots, like any other precision equipment, require periodic inspections, lubrication, and parts replacement. Developing a preventive maintenance schedule from the outset ensures higher reliability and longer service life, while also minimizing unplanned downtime.
In essence, a robot cannot function in isolation. It must be supported by both physical infrastructure and a well-trained team that understands not just how to run it, but how to integrate it into an evolving production system. Overlooking this foundation is one of the main reasons why promising robotics projects fail to deliver their full potential.
Get started with ENCY Robot through our detailed video tutorials. From basic setup to advanced robot programming.
Despite the growing accessibility of robotics, many companies continue to make avoidable mistakes when selecting a system for automation. These missteps often stem not from poor technology, but from insufficient planning and unrealistic expectations.
One of the most frequent errors is failing to assess the facility’s readiness before choosing the robot. Power supply, floor space, foundation load capacity, and environmental conditions all influence whether a particular model can function as intended. Without a proper site audit, even the most advanced robot can become a source of friction rather than a solution.
Another common oversight is neglecting personnel readiness. While user-friendly interfaces have lowered the barrier to entry, robot operation and maintenance still require specific skills. Companies that do not invest in structured training for operators and technicians often find themselves reliant on external support, which slows response times and increases long-term costs.
A third frequent issue is the tendency to over-specify. It’s not uncommon for businesses to select robots with advanced features — such as vision systems or redundant axes — that far exceed the needs of the application. These additions can inflate costs, complicate integration, and ultimately remain underutilized. The smarter approach is to define the process requirements in detail and select the robot based on actual needs, not on perceived future capabilities.
Integration itself presents another layer of complexity. Selecting a robot that cannot easily communicate with existing production equipment or software infrastructure can lead to extended commissioning periods and unexpected compatibility issues. These situations can usually be avoided by involving experienced system integrators early in the planning phase.
Lastly, focusing solely on the purchase price can mislead decision-makers. The true cost of a robot includes integration, training, programming, maintenance, and downtime. A system that appears affordable on paper may become expensive to operate if it requires significant customization or is prone to failure due to poor fit with the intended task.
Understanding these common pitfalls — and addressing them proactively — can significantly increase the likelihood that a robotics investment delivers its expected return and integrates smoothly into daily operations.
Test the full power of offline robot programming. Build your virtual robotic cell, simulate, optimize, and generate toolpaths with no limitations.
The field of robotics is evolving rapidly, and recent years have brought significant advancements not just in hardware performance but also in intelligence, connectivity, and user interaction. For companies planning new automation projects, staying ahead of these trends can offer competitive advantages in flexibility, efficiency, and scalability.
In industrial robotics, one of the most impactful developments is the integration of artificial intelligence. Modern robots are beginning to adapt to environmental changes, product variations, and unforeseen obstacles without manual intervention. AI-driven path planning, force control, and anomaly detection allow robots to function more autonomously and reduce dependence on precise fixturing or rigid programming. In parallel, energy efficiency is improving, with newer models featuring regenerative braking and low-power standby modes — helping manufacturers lower operational costs and reduce environmental impact.
Collaborative robots, or cobots, are also undergoing transformation. As sensors and safety algorithms become more advanced, cobots can move faster and handle more complex tasks while maintaining compliance with international safety standards. Machine vision is another key area of innovation. Improved object recognition and 3D scanning capabilities enable cobots to sort, inspect, and manipulate parts with minimal programming — opening the door to more agile and responsive production setups.
In the domain of service and special-purpose robots, miniaturization and enhanced autonomy are leading trends. Robots used in logistics, healthcare, or public environments are now more compact and mobile, with longer battery life and smarter navigation algorithms. Many of these systems are integrated with IoT platforms, allowing real-time monitoring, diagnostics, and fleet coordination across multiple sites.
Across all categories, three macro-trends are defining the direction of robotics as a whole:
Together, these innovations signal a shift from robots as isolated machines to robots as collaborative agents within a connected, intelligent, and adaptive manufacturing environment. For forward-looking companies, embracing these technologies is not just an opportunity — it is a strategic imperative.
Modern robotics offers unprecedented possibilities for businesses of all sizes. Whether you’re streamlining metal cutting operations, assembling electronics, or automating hospital logistics, there’s likely a robot — and a programming method — that fits your needs.
Understanding the nuances between robot types isn’t just a technical concern — it’s a strategic imperative. With a thoughtful selection and well-planned deployment, robotics can improve efficiency, lower costs, and give your company a critical edge in a competitive marketplace.
As with any powerful tool, the key lies in knowing what to use, when, and how.
