ABB IRB 4400/60

Heavy-Duty Industrial Robot ABB IRB 4400/60
Specifications
Type
Industrial Robot
Brand
ABB
Model
IRB 4400/60
Axes
7
Payload
60 kg
Reach
1960 mm
Repeatability
0.190 mm
Weight
1040 kg
Maximum speed
330 °/s (axis 6)
Speed at rated payload
150 °/s (axis 1)
IP rating
Manipulator: standard IP54; Foundry/wash versions IP67, steam washable
Operating temperature
+5 to +45 °C during operation; storage/shipping −25 to +55 °C (short periods up to +70 °C)
Mounting orientation
Floor mounting (standard); a shelf-mounted version also available
Controller
IRC5 (also earlier versions like S4C/S4Cplus/M2000 available)
Power supply
200-600 V AC, 50/60 Hz
Power consumption
7.8 kVA
Tool flange
Mechanical interface: 6 screws, quality class 12.9; mounting flange interface per ABB IRB 4400 specification (e.g. D=125 mm etc.)
Certifications
UL (fire safety), compliance with IEC529 protection standards, EMC/EMI emission shielding
Cleanroom class
US Federal Standard 209, Class 100
Safety functions
Double circuits with supervision, emergency stops, 3-position enable device, hold-to-run control, safety lamp (optional)
Communication interfaces
Serial links, network interfaces, PLC, remote I/O, field bus interfaces

The Heavy-Duty Industrial Robot ABB IRB 4400/60 is designed for rigorous automation tasks with its seven axes, offering a payload capacity of 60 kg and a reach of 1960 mm. With a repeatability of 0.190 mm and a maximum speed of 330 °/s, this robot excels in high-performance environments, featuring an operating temperature range of +5 to +45 °C and a robust IP54 rating, with options for more demanding conditions. It is equipped with an IRC5 controller and a variety of communication interfaces, making it a versatile choice for diverse industrial applications.

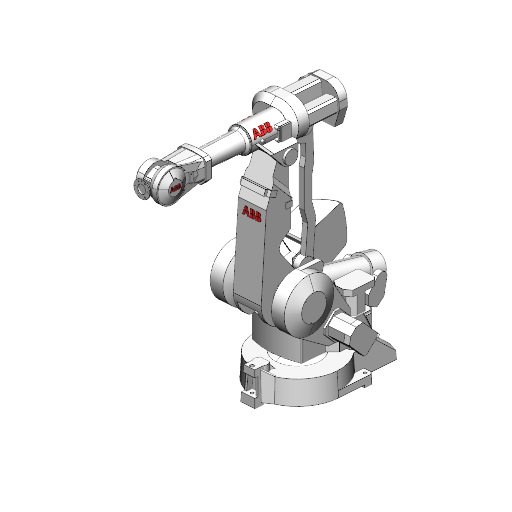

3D View

What are the technology applications of IRB 4400/60?

ABB IRB 4400/60 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 4400/60: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
