Heavy-Duty Industrial Robot ABB IRB 8700-550/4.20 Specs and Applications

Specifications

Type

Heavy-Duty Industrial Robot

Brand

ABB

Model

IRB 8700-550/4.20

Axes

Payload

550 kg

Reach

4200 mm

Repeatability

0.08 mm

Weight

4575 kg

Maximum speed

115 °/s

Speed at rated payload

115 °/s

IP rating

IP67

Operating temperature

+5 to +50 °C during operation, -25 to +55 °C during storage/transport; short periods up to +70 °C

Mounting orientation

Floor

Controller

IRC5 Single-cabinet

Power supply

200-600 V, 50/60 Hz

Power consumption

3.93 kW

Tool flange

Standard and LeanID

Certifications

CE; ANSI/UL 1740; CAN/CSA Z434-14; compliance with EN ISO/IEC standards for safety of industrial robots

Safety functions

Double circuits with supervision; emergency stop; protective stop; three-position enable device; SafeMove2

The Industrial Robot ABB IRB 8700-550/4.20 is a high-performance automation solution featuring 7 axes and a robust payload capacity of 550 kg. With a reach of 4200 mm and a repeatability of 0.08 mm, this model is designed to operate efficiently across a variety of applications. Built for reliability, it operates within a temperature range of +5 to +50 °C and boasts an IP67 rating, ensuring durability in demanding industrial environments.

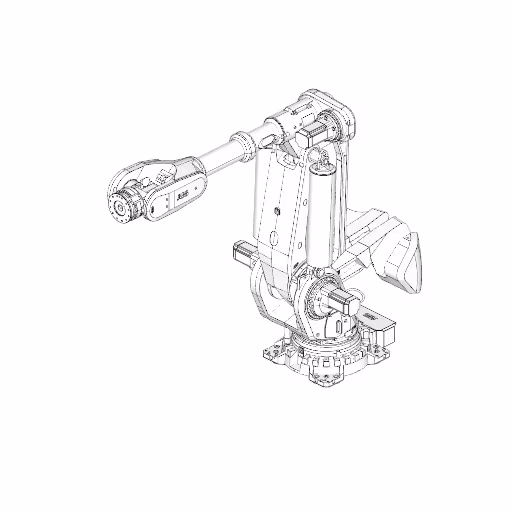

3D View

What are the technology applications of IRB 8700-550/4.20?

ABB IRB 8700-550/4.20 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 8700-550/4.20: Deburring, Machine Tending, Multiaxis cutting, Robot milling, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
