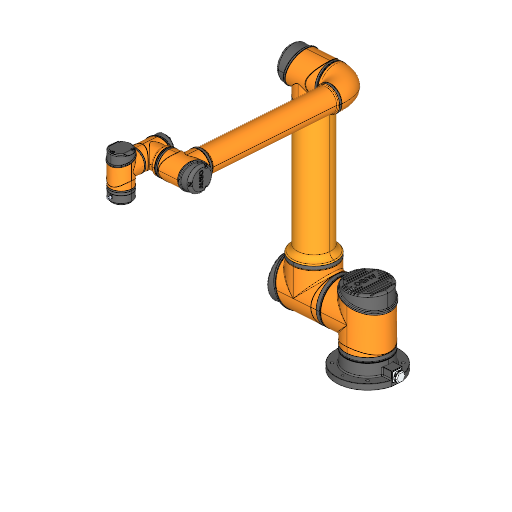

Specifications
Type
Cobot
Brand
AUBO
Model
i10
Axes
6
Payload
10 kg
Reach
1350 mm
Repeatability
0.1 mm
Weight
38.5 kg
Speed at rated payload
4 m/s
IP rating
IP54
Mounting orientation
Any (floor, ceiling, wall)
Controller
AUBO-CB-M
Power supply
100-240 VAC, 50/60 Hz
Power consumption
500 W
Tool flange
DIN ISO-9409-1-50-4
Certifications
CE, UL, EN ISO 13849-1:2015 (PL=d, Cat.3), SEMI S2, KCs, CR
Cleanroom class
ISO Class 5 (ISO14644-1 Class 5)
Safety functions
Enabling device, Emergency stop (pendant & control box), System Stop input, Protective stop for collisions; meets EN ISO 13849-1:2015 (PL=d, Cat.3)
Communication interfaces
TCP/IP, Modbus-RTU, Modbus-TCP, CAN bus; SDK supporting C/C++/C#/Lua/Python; ROS, Linux, Windows
What are the technology applications of i10?
Primary applications of AUBO i10:Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.
What is ENCY Robot
ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.
AUBO i10 applications programmed with ENCY Robot
Pick-and-Place
Polishing
Frequently asked questions
Can AUBO i10 be programmed with ENCY Robot?
Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.
How can I start programming AUBO i10 with ENCY Robot?
Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.
It is possible to install a free version of ENCY Robot and start programming AUBO i10 with it?
Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.
How to buy ENCY Robot?
If you would like to purchase ENCY, please contact us for a quote.
