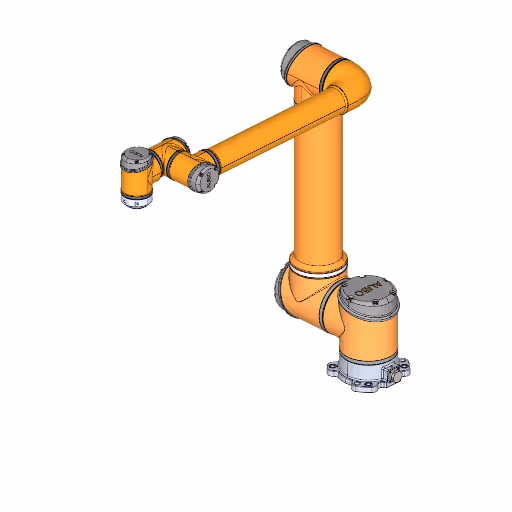

Cobot AUBO iS20 Specs and Applications

Specifications

Type

Cobot

Brand

AUBO

Model

iS20

Axes

Payload

20 kg

Reach

1647 mm

Repeatability

0.05 mm

Weight

64 kg

Maximum speed

2.6 m/s

Speed at rated payload

2.6 m/s

IP rating

IP54

Mounting orientation

Any

Controller

AUBO-IS-CB-M

Power supply

AC 100-240 V, 50/60 Hz

Power consumption

1000 W

Certifications

EN ISO 13849-1:2015 (PL=d, CAT 3), UL, CE, SEMI S2

Cleanroom class

ISO 14644-1 Class 5

Safety functions

Safety-monitored stop, speed & separation monitoring, force/torque limitation, collision detection, manual guidance, redundant safety I/O

Communication interfaces

Ethernet TCP/IP, Modbus RTU/TCP, Profinet, Ethernet/IP, open SDK supporting C/C++, C#, Lua, Python, ROS

The Cobot AUBO iS20 is a versatile six-axis collaborative robot designed to enhance industrial automation processes. With a payload capacity of 20 kg and a reach of 1647 mm, this robot ensures precise operation with a repeatability of 0.05 mm at a maximum speed of 2.6 m/s. Its robust features include IP54 protection, compatibility with multiple communication interfaces, and compliance with safety standards, making it an ideal choice for a wide range of manufacturing applications.

3D View

What are the technology applications of iS20?

AUBO iS20 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of AUBO iS20: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
