Cobot AUBO iS7 Specs and Applications

Specifications

Type

Cobot

Brand

AUBO

Model

iS7

Axes

Payload

7 kg

Reach

886.5 mm

Repeatability

0.02 mm

Weight

21.5 kg

Maximum speed

296.3 °/sec

IP rating

IP54 to IP68 (depending on configuration)

Mounting orientation

Any ceiling, floor, wall

Controller

AUBO-CB-M control box with teach pendant (AUBO-TP)

Power supply

AC 100-240 V, 50/60 Hz

Power consumption

500 W (average)

Tool flange

ISO 150-compliant standard end-of-arm tooling interface

Certifications

CE, UL, EN ISO 13849-1:2015, ISO/TS 15066, SEMI S2

Cleanroom class

ISO 14644-1 Class 5

Safety functions

EN ISO 13849-1:2015 (PL=d, CAT 3), ISO/TS 15066, 10-levels of customizable collision detection, redundant safety I/O, braking in case of power loss

Communication interfaces

Ethernet, Modbus-RTU/TCP, Profinet, TCP/IP, SDK/API

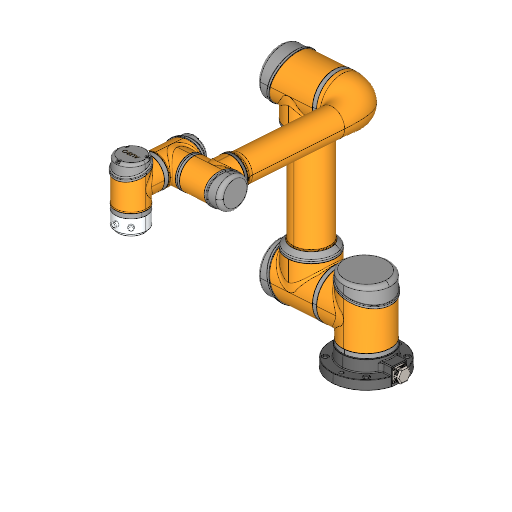

The Cobot AUBO iS7 is a compact and versatile 6-axis robotic arm designed for industrial automation, featuring a payload capacity of 7 kg and a reach of 886.5 mm. With an impressive repeatability of 0.02 mm and a maximum speed of 296.3 °/sec, this cobot is suitable for a wide range of applications, including cleanroom environments up to ISO 14644-1 Class 5. The Cobot AUBO iS7 is equipped with flexible mounting options, comprehensive safety features, and multiple communication interfaces, making it an ideal choice for advanced automation solutions.

3D View

What are the technology applications of iS7?

AUBO iS7 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of AUBO iS7: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

AUBO iS7 applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase AUBO iS7 or request a quote, please contact the manufacturer or an authorized local supplier.
