Industrial Robot BORUNTE BRTIRUS3050B Specs and Applications

Specifications

Type

Industrial Robot

Brand

Borunte

Model

BRTIRUS3050B

Axes

Payload

500 kg

Reach

3050 mm

Repeatability

0.5 mm

Weight

3200 kg

Maximum speed

161.2 °/s (joint 6)

IP rating

Wrist: IP54, Body: IP40

Mounting orientation

Floor-mounted

Controller

Handheld conversational teaching pendant control system

Power supply

380V ±10%, 50Hz / 60Hz

Power consumption

33.78 kVA

Safety functions

Emergency stop switch, key mode selection switch, 3-segment position enable switch

Communication interfaces

Modbus RTU (master), Modbus RTU/TCP (slave), USB, internal dedicated bus (expandable to 8 axes)

The BORUNTE BRTIRUS3050B is a high-performance industrial robot designed for versatile automation applications. With 7 axes and a payload capacity of 500 kg, this robot offers an impressive reach of 3050 mm and a repeatability of 0.5 mm. It features a user-friendly handheld conversational teaching pendant for intuitive control and is equipped with advanced safety functions, multiple communication interfaces, and a robust power supply setup, making it a reliable choice for demanding industrial environments.

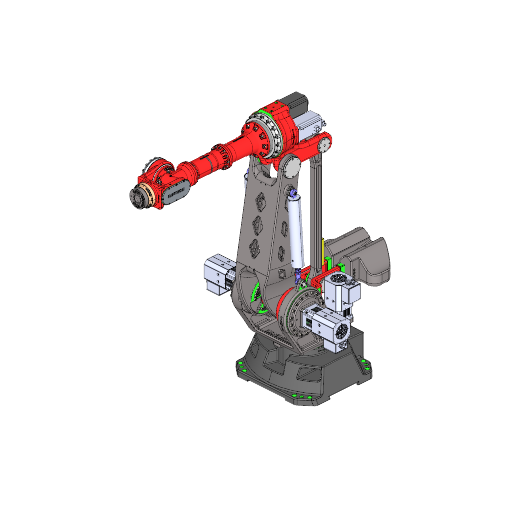

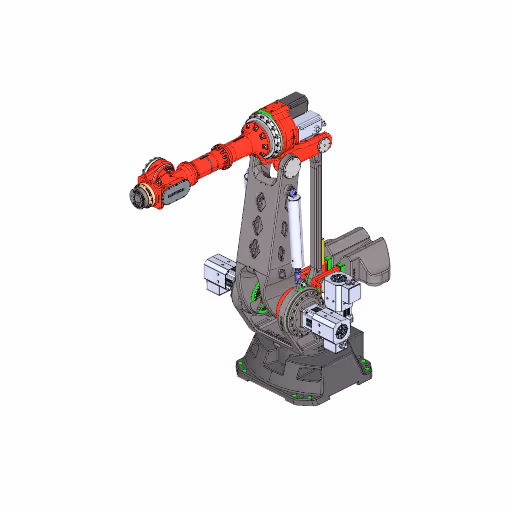

3D View

What are the technology applications of BRTIRUS3050B?

BORUNTE BRTIRUS3050B is a versatile robot suitable for a wide range of industrial applications.

Primary applications of BORUNTE BRTIRUS3050B: Deburring, Grinding, Multiaxis cutting, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

BORUNTE BRTIRUS3050B applications programmed with ENCY Robot

Multiaxis cutting

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase BORUNTE BRTIRUS3050B or request a quote, please contact the manufacturer or an authorized local supplier.

Other Industrial Robot by Borunte

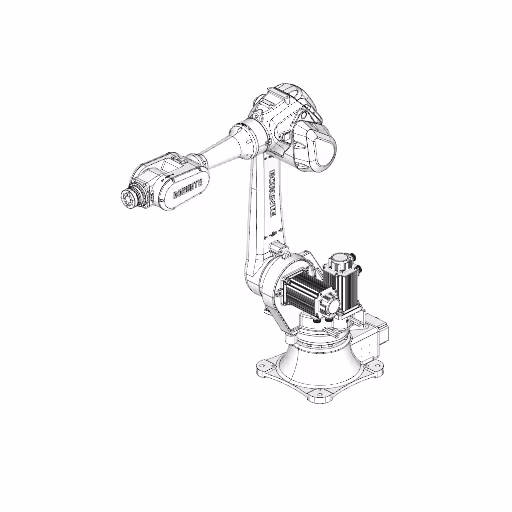

BORUNTE BRTIRUS 1820A
