Industrial Robot CRP CRP-RH26-210 Specs and Applications

Specifications

Type

Industrial Robot

Brand

CRP

Model

CRP-RH26-210

Axes

Payload

210 kg

Reach

2606 mm

Repeatability

0.06 mm

Weight

1270 kg

IP rating

Body IP54, Wrist IP67

Mounting orientation

Ground, Upside Down, Wall

Controller

G4 control cabinet

Power supply

3-phase 380 VAC, 50/60 Hz

Safety functions

Dual-circuit emergency stop, external emergency stop, anti-collision protection, safety latch; MC safety loop; servo softening

Communication interfaces

Digital I/O, Ethernet, analog outputs (0-10 V), dual encoder signals, USB via teaching pendant

The Industrial Robot CRP CRP-RH26-210 is a high-performance automation component designed for versatility in demanding environments. With six axes, a payload capacity of 210 kg, and a reach of 2606 mm, this robot ensures precise handling and execution of complex tasks with a repeatability of 0.06 mm. Built to withstand industrial use, it features an IP54 body and IP67 wrist rating, supports multiple mounting orientations, and is equipped with advanced safety functions and a G4 control cabinet for efficient operation.

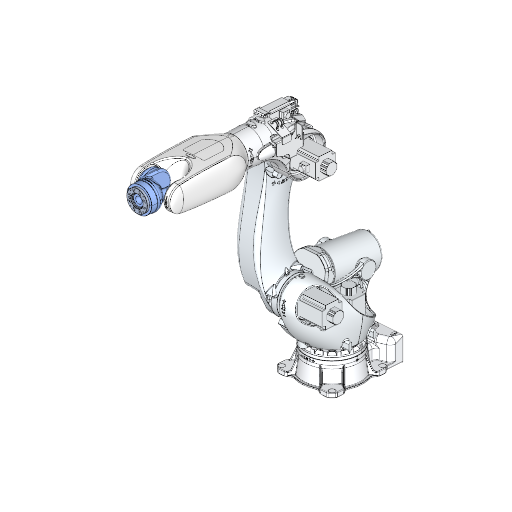

3D View

What are the technology applications of CRP-RH26-210?

CRP CRP-RH26-210 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of CRP CRP-RH26-210: Assembly, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
