Industrial Robot CRP RH18-20 Specs and Applications

Specifications

Type

Industrial Robot

Brand

CRP

Model

RH18-20

Axes

Payload

20 kg

Reach

1740 mm

Repeatability

0.08 mm

Weight

285 kg

Maximum speed

708 °/s

Speed at rated payload

483 °/s

IP rating

Body IP54, Wrist IP67

Mounting orientation

Floor, Ceiling (upside down), Wall

Controller

G4 control cabinet; C-series teach pendant (8-inch TFT-LCD with keyboard + touch screen, safety switch, emergency stop board independent)

Power supply

3-phase 380 VAC 50-60 Hz

Tool flange

Middle hollow bore 44-46 mm (for water-cooled torch or bellows torch)

Certifications

Safety functions

Independent emergency stop board; safety relay circuit for dual-circuit E-stop; external E-stop; anti-collision; safety latch; MC safety loop; servo softening

Communication interfaces

Digital I/O, 0–10 V analog output; Ethernet; Dual encoder signal interface; COM expansion

The Industrial Robot CRP RH18-20 is a versatile six-axis robot designed for high-performance automation applications. With a payload capacity of 20 kg and an impressive reach of 1740 mm, this robust robot is perfect for demanding tasks in various mounting orientations, including floor, ceiling, and wall installations. It features a repeatability of 0.08 mm and operates at maximum speeds of 708 °/s, ensuring precision and efficiency in your production line while complying with CE safety standards.

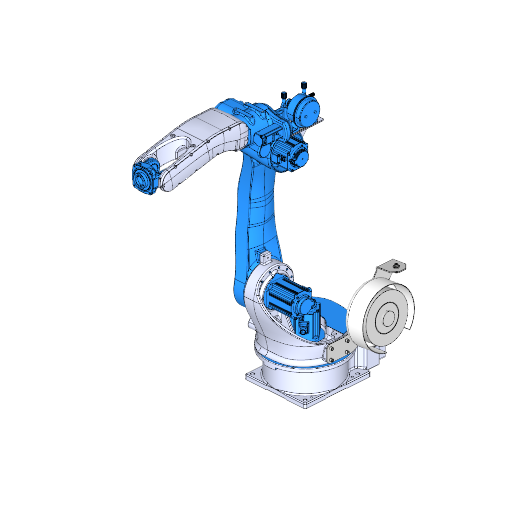

3D View

What are the technology applications of RH18-20?

CRP RH18-20 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of CRP RH18-20: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

CRP RH18-20 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase CRP RH18-20 or request a quote, please contact the manufacturer or an authorized local supplier.
