DOOSAN E0509

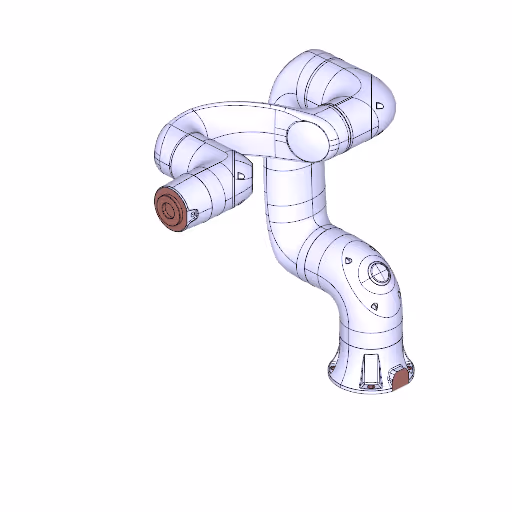

Cobot DOOSAN E0509

Specifications

Type

Cobot

Brand

Doosan

Model

E0509

Axes

6

Payload

5 kg

Reach

900 mm

Repeatability

0.05 mm

Weight

22 kg

Speed at rated payload

1 m/s

IP rating

IP66

Mounting orientation

Any Orientation

Controller

Doosan Controller, DART Platform, Smart Pendant (Option)

Power supply

DC 24V / Max. 3A

Power consumption

210 W

Tool flange

Digital I/O - X1 IN-2ch / OUT-2ch; RS-485; Phoenix connector 1424229 female

Certifications

NSF

Cleanroom class

NSF Certification

Safety functions

Safety-Rated monitoring and safety-rated electrical interfaces; safety-rated stop; emergency stop; protective stop; meets Category 3, Performance Level d (PL d) under ISO 13849-1; SIL 2 under IEC 62061

Communication interfaces

Digital I/O, RS-485

Download DOOSAN E0509 digital twin

Start for free
The Cobot DOOSAN E0509 is a versatile 6-axis collaborative robot designed for efficient industrial automation. With a payload capacity of 5 kg and a reach of 900 mm, it delivers precise performance with a repeatability of 0.05 mm and a maximum speed of 1 m/s. Rated IP66 for protection against dust and water, this lightweight 22 kg robot can be mounted in any orientation and is compliant with NSF certification, making it suitable for cleanroom applications while ensuring safety with advanced monitoring features.
3D View

What are the technology applications of E0509?

DOOSAN E0509 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOOSAN E0509:Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

DOOSAN E0509 applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can DOOSAN E0509 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase DOOSAN E0509 or request a quote, please contact the manufacturer or an authorized local supplier.
